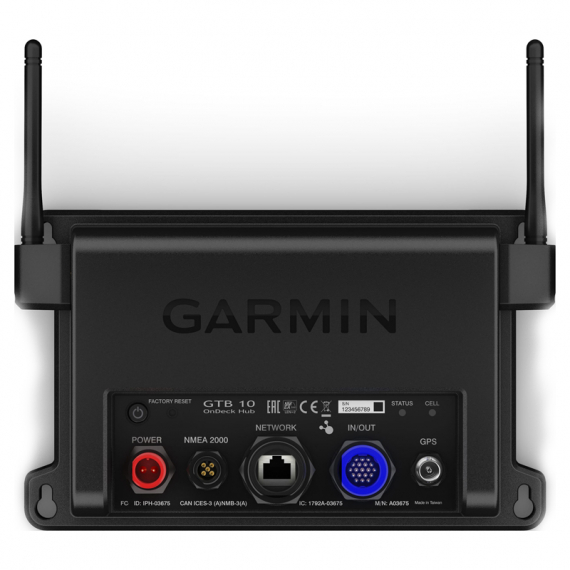

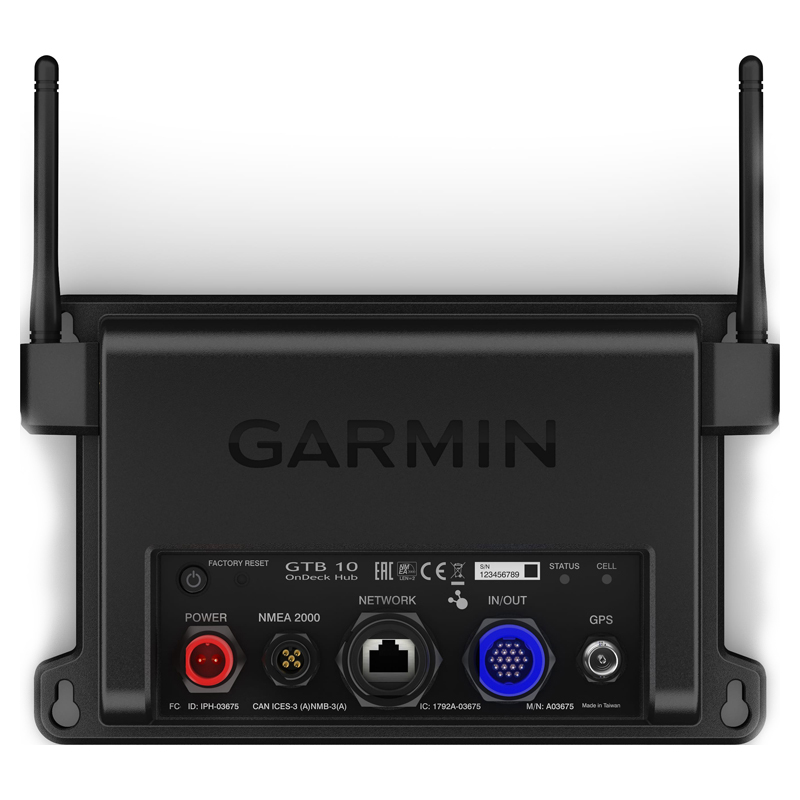

Garmin GTB 10 OnDeck Hub

With Garmin GTB 10 OnDeck Hub you can track, monitor and control up to 5 switches on your boat with the OnDeck™ system, a fully integrated remote connectivity solution.

Track
Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 or 30 minutes, depending on power status, and will send text alerts1 if your boat leaves the geo-fenced area.

Monitor
Get updates on your boat’s battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain® app.

Control
Get out on the water faster when you turn on up to 5 selected systems, including battery chargers, ice makers and more, from afar via relay switches.

ActiveCaptain App
Download the ActiveCaptain app to your compatible smartphone to manage your vessel. It’s where you can set up alarm notifications, take control of your boat and so much more1.

Store Data
Securely collect vessel data with the GTB 10 OnDeck Hub and store it in the cloud for up to 30 days.

Always-on Connection
The GTB 10 hub uses 3G/4G coverage.

Backup Battery
A 48-hour internal backup battery allows access to OnDeck after the boat battery is depleted or the power is disconnected.

Subscription
To stay in touch with your vessel, an active subscription plan is required. Choose between an annual plan or pay month-to-month.

Full Integration
The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000® sensors).

General

• Physical dimensions without antennas: 9.1" x 1.9" x 5.6" (23.1 x 4.9 x 14.2 cm)
• Physical dimensions with antennas pointing up: 9.1" x 5.2" x 5.6" (23.1 x 13.2 x 14.2 cm)
• Physical dimensions with antennas parellel to mounting: 9.1" x 1.9" x 8.5" (23.1 x 4.9 x 21.5 cm)
• Weight: 1.4 lbs (0.64 kg)
• Power consumption: 20 W max at 10 Vdc
• Input voltage range:  From 10 to 32 Vdc
• Battery life: Up to 48 hours
• Monitoring frequency: 15 minutes

Connectivity

• NMEA 2000® compatible: Yes
• ActiveCaptain compatible: Yes
• Cellular connectivity: Yes (3G/4G)
• Wi-Fi: Yes
• Garmin Marine Network: Yes

• Bilge pump: Yes (2)
• Security: Yes
• Battery voltage: Yes (2)
• Temperature: Yes
• Shore power: Yes
• GPS location: Yes
• Distance log: Yes

• Fluid level: Yes
• Temperature: Yes
• Water depth: Yes
• Position: Yes
• Course over ground: Yes
• Speed over ground: Yes
• Vessel speed: Yes
• Wind data: Yes
• Fuel flow rate: Yes
• Engine hours: Yes
• Engine warning indicators: Yes
• DC Voltage: Yes

• Relay switch Yes (5)

• Temperature: Yes
• Geofence: Yes
• Offline: Yes
• Voltage: Yes
• Shore power: Yes
• Security sensor: Yes
• Depth: Yes
• Bilge pump: Yes

Whats in the box?

• OnDeck Hub
• OnDeck™ security sensor
• OnDeck™ temperature sensor
• OnDeck™ shore power sensor
• OnDeck™ relay switch 12 Vdc (1x)
• Power cable
• In/out data cable (19-pin), sensor/relay output
• Garmin Marine Network cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
