Take your fishing to new levels with the Garmin Echomap UHD 62cv, this is world class!

Productinformation

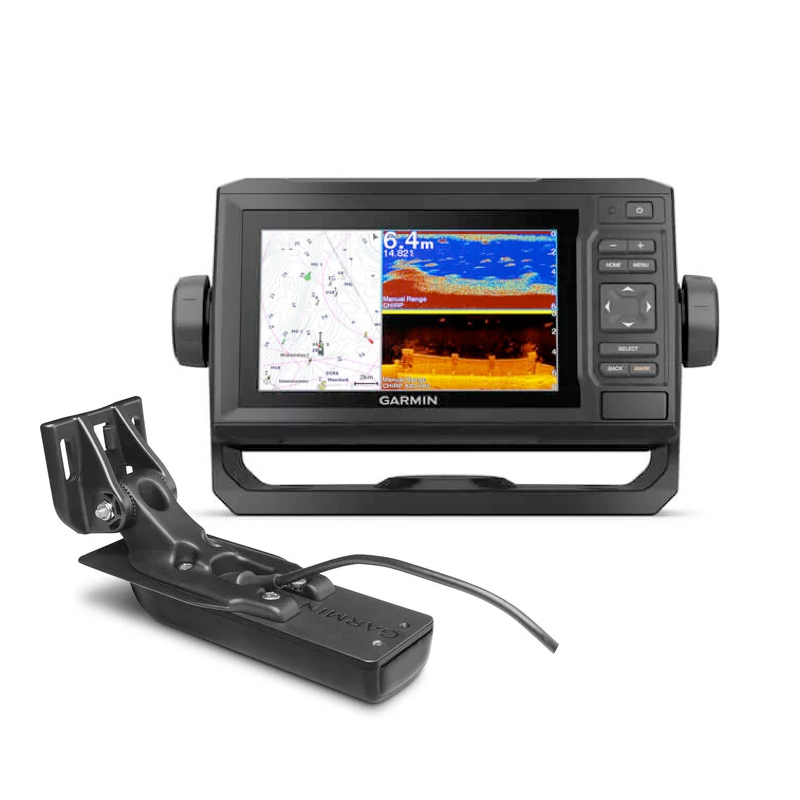

The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

• See below your boat in incredible detail with GT24 xdcr transducer
• Navigate any waters with optional charts and maps
• Manage your marine experience from nearly anywhere
• Create your own maps on the fly and tailor them to fit your needs

Content:
• ECHOMAP UHD 62cv with worldwide basemap
• GT24UHD-TM transducer
• Power/data cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation

General
• Physical dimensions 8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
• Display size 5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
• Display resolution 480 x 800 pixels
• Display type WVGA display
• Weight: 1.6 lbs (0.7 kg)
• Water rating: IPX7
• Power consumption: 12W
• Antenna: Internal or external over NMEA 2000
• Mounting options: Bail or flush
• Receiver: 5 Hz
• Garmin Marine Network™ ports: None

Maps & Memory
• Preloaded maps: Worldwide basemap
• Accepts data cards: 1 microSD™ card; 32 GB max size
• Waypoints: 5,000
• Routes: 100
• Track log: 50,000 points; 50 saved tracks

Outdoor Recreation Features
• Tide tables: Yes

Chartplotter Features
• Garmin Sonar compatible: Yes
• Supports AIS (tracks target ships position): Yes
• Supports DSC (displays position data from DSC-capable VHF radio): Yes
• ActiveCaptain compatible: Yes
• Sailing Features: Yes

Sonar Features & Specifications
• Dual-frequency (50/200 kHz) sonar capable: Yes
• Dual-beam (77/200 kHz) sonar capable: Yes
• Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
• CHIRP sonar technology: Yes (Built-in)
• ClearVü: Yes with CHIRP (built-in)
• SideVü: No
• Maximum depth: 2,300 ft @ 77 kHz, freshwater, 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
• Bottom lock (shows return from the bottom up): Yes
• Water temperature log and graph: Yes
• Sonar recording: Yes
• Sonar history rewind: Yes

Connections
• NMEA 2000® compatible: Yes
• Transducer pin numbers: 4
• NMEA 0183 input ports: 1
• NMEA 0183 output ports: 1
• Video input ports: None
• Video output ports: None
• Wireless connectivity: Yes
