Summary

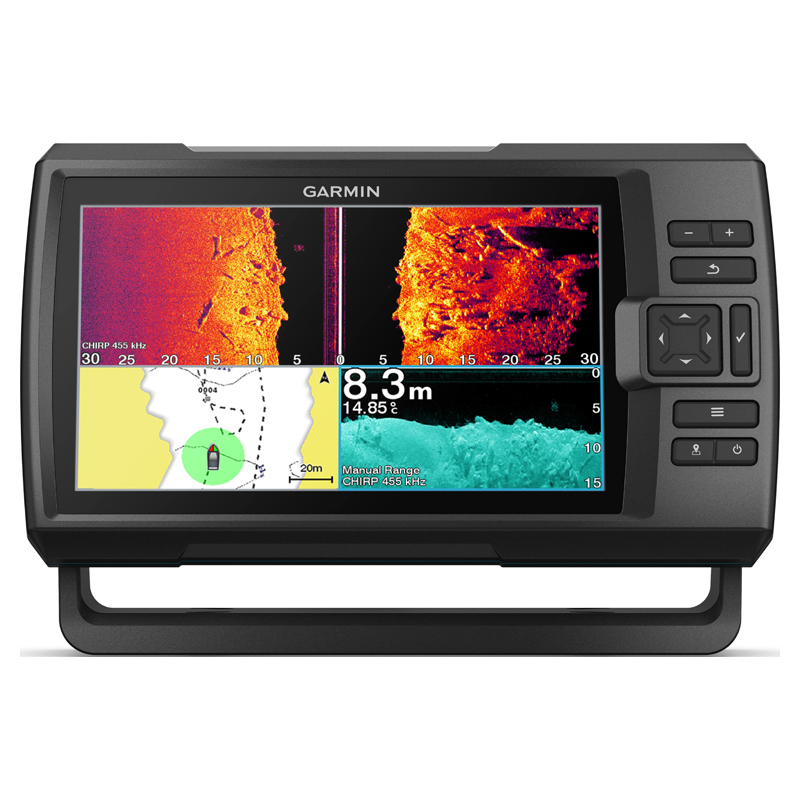

Garmin Striker Vivid 9sv, w/GT52, helps you see fish and structures in colorful details. These easy-to-use devices have a new high-contrast color palette to make it easier to see what's beneath the surface. Sensor with Garmin traditional CHIRP sonar, CHIRP ClearVü, and a tilt/swivel mount included.

Productinformation

Garmin Striker Vivid 9sv, w/GT52, helps you see fish and structures in colorful details. These easy-to-use devices have a new high-contrast color palette to make it easier to see what's beneath the surface. Sensor with Garmin traditional CHIRP sonar, CHIRP ClearVü, and a tilt/swivel mount included. With the help of built-in GPS with high sensitivity, you can mark waypoints, create your own maps with one-foot contours and see the boat's speed.

Please note that this unit is not compatible with charts.

Clear, Colorful Sonar
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 9” fishfinder.

Built-In Sonar
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

Waypoint Marking
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High-Sensitivity Gps
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

General

  • Physical Dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
  • Display Resolution: 800 x 480 pixels
  • Display Type: WVGA color
  • Weight: 2.4 lbs (1.1 kg)
  • Water Rating IPX7
  • Transmit Power 500 W (RMS)


Sonar Features & Specifications

  • Dual-Frequency (50/200 Khz) Sonar Capable: Yes
  • Dual-Beam (77/200 Khz) Sonar Capable: Yes
  • Frequencies Supported Traditional:
    • 50/77/200 kHz
    • CHIRP (mid and high)
    • ClearVü 260/455/800 kHz
  • Bottom Lock (Shows Return From The Bottom Up): Yes
  • Water Temperature Log And Graph: Yes



Fishfinder Features

  • Split-Screen Zoom: Yes
  • Ultrascroll® (Displays Fish Targets At Higher Boat Speeds): Yes
  • Fish Symbol Id (Helps Identify Fish Targets): Yes
  • Autogain Technology (Minimizes Clutter, Maximizes Targets): Yes
  • Adjustable Depth Line (Measures Depth Of Underwater Objects): Yes
  • A-Scope (Real-Time Display Of Fish Passing Through Transducer Beam): Yes
  • Water Temperature Sensor Included: Yes


Additional

  • One 4-pin transducer port
  • One 4-pin SideVü transducer port
  • Wireless Connectivity: Yes
  • Quickdraw Contours
  • Integrated GPS
  • Mark Waypoints
  • Course over Ground (COG)
  • Current draw @ 12V: 0.75A


What's in the box?

  • STRIKER Vivid 9sv fishfinder
  • GT52HW-TM transducer
  • Power/data cable
  • 12-pin to dual 4-pin transducer adapter cable
  • Tilt mount
  • Hardware
  • Garmin bumper sticker
  • Documentation
