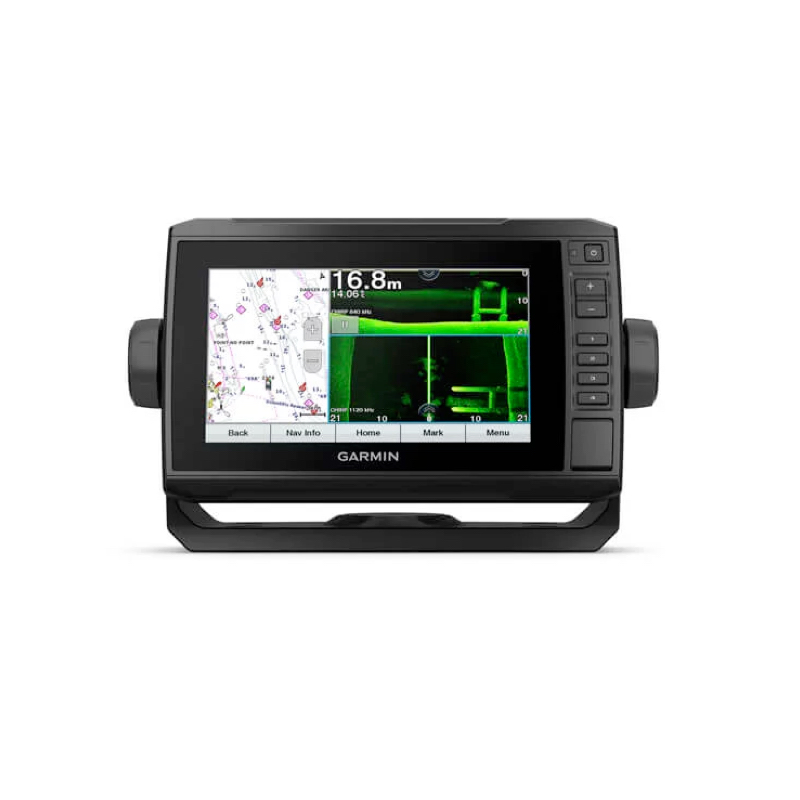

Take your fishing to new levels with the Garmin Echomap UHD 72sv!

Productinformation

The sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below and around your boat in incredible detail with optional transducer (not included in this package)
Navigate any waters with optional charts and maps
Share data with other devices on your network (7” and 9” models only)
Manage your marine experience from nearly anywhere
Control the most powerful trolling motor available
Create your own maps on the fly and tailor them to fit your needs

Content:
- ECHOMAP UHD 72sv with worldwide basemap
- 8-pin transducer to 12-pin sounder adapter cable
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation

General
- Physical dimensions: 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
- Display size: 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
- Display resolution: 400 x 800 pixels
- Display type: WVGA display
- Weight: 1.7 lbs.(0.77kg)
- Water rating: IPX7
- Power consumption: 15W
- Antenna: Internal or external over NMEA 2000
- Mounting options: Bail or flush
- Receiver: 5 Hz
- Garmin Marine Network™ ports: 1 Panoptix™ port

Maps & Memory
- Preloaded maps: None
- Accepts data cards: 1 microSD™ card; 32 GB maximum card size
- Waypoints: 5,000
- Routes: 100
- Track log: 50,000 points; 50 saved tracks

Outdoor Recreation Features:
- Tide tables: Yes

Chartplotter Features
- Garmin Sonar compatible: Yes
- Supports AIS (tracks target ships position): Yes
- Supports DSC (displays position data from DSC-capable VHF radio): Yes
- GCV™ Black Box sonar support: Yes
- ActiveCaptain compatible: Yes
- Sailing Features: Yes

Sonar Features & Specifications:
- Dual-frequency (50/200 kHz) sonar capable: Yes
- Dual-beam (77/200 kHz) sonar capable: Yes
- Transmit power 500 W (RMS) / 4,000 W (peak to peak)
- CHIRP sonar technology: Yes (Built-in)
- ClearVü: Yes with CHIRP (built-in)
- SideVü: Yes with CHIRP
- Maximum depth: 2,300 ft @ 77 kHz, freshwater, 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
- Bottom lock (shows return from the bottom up): Yes
- Water temperature log and graph: Yes
- Sonar recording: Yes
- Sonar history rewind: Yes

Connections:
- NMEA 2000® compatible: Yes
- Transducer pin numbers 12
- NMEA 0183 input ports 1
- NMEA 0183 output ports 1
- Video input ports None
- Video output ports None
- Wireless connectivity Yes
