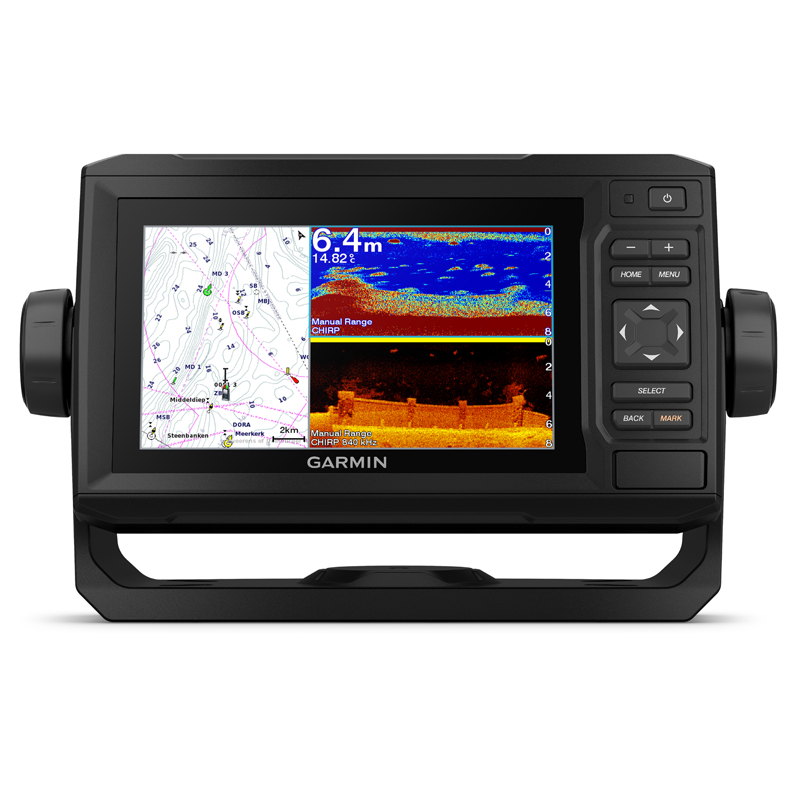

Garmin Echomap UHD 62cv without transducer adapter cable - 8 pin included

The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

• See below your boat in incredible detail with optional transducer (note that transducer is not included in this package)
• Navigate any waters with optional charts and maps
• Manage your marine experience from nearly anywhere
• Create your own maps on the fly and tailor them to fit your needs

Content:
- ECHOMAP UHD 62cv with worldwide basemap
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation

General
- Physical dimensions 8.6" x 5.1" x 2.6" (21.8 x 13.0 x 6.2cm)
- Display size 5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal)
- Display resolution 480 x 800 pixels
- Display type WVGA display
- Weight: 1.6 lbs (0.7 kg)
- Water rating: IPX7
- Power consumption: 12W
- Antenna: Internal or external over NMEA 2000
- Mounting options: Bail or flush
- Receiver: 5 Hz
- Garmin Marine Network™ ports: None

Maps & Memory
- Preloaded maps: Worldwide basemap
- Accepts data cards: 1 microSD™ card; 32 GB max size
- Waypoints: 5,000
- Routes: 100
- Track log: 50,000 points; 50 saved tracks

Outdoor Recreation Features
- Tide tables: Yes

Chartplotter Features
- Garmin Sonar compatible: Yes
- Supports AIS (tracks target ships position): Yes
- Supports DSC (displays position data from DSC-capable VHF radio): Yes
- ActiveCaptain compatible: Yes
- Sailing Features: Yes

Sonar Features & Specifications
- Dual-frequency (50/200 kHz) sonar capable: Yes
- Dual-beam (77/200 kHz) sonar capable: Yes
- Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
- CHIRP sonar technology: Yes (Built-in)
- ClearVü: Yes with CHIRP (built-in)
- SideVü: No
- Maximum depth: 2,300 ft @ 77 kHz, freshwater, 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
- Bottom lock (shows return from the bottom up): Yes
- Water temperature log and graph: Yes
- Sonar recording: Yes
- Sonar history rewind: Yes

Connections
- NMEA 2000® compatible: Yes
- Transducer pin numbers: 4
- NMEA 0183 input ports: 1
- NMEA 0183 output ports: 1
- Video input ports: None
- Video output ports: None
- Wireless connectivity: Yes
