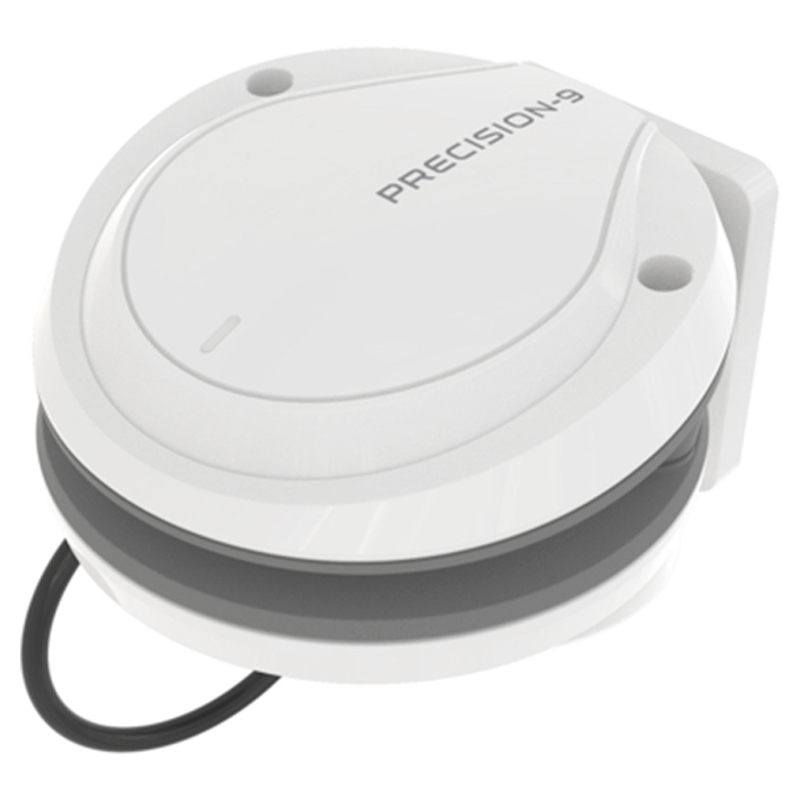

Simrad Precision-9 Compass

The Precision-9 Compass from Simrad supplies accurate heading and rate-of-turn information, based on an internal array of solid-state sensors that measure motion and orientation on nine axes. An easily adjustable mounting bracket and NMEA 2000® connectivity enable simple installation aboard any boat, including an up-mast mounting option for steel-hulled vessels.

Key Features

• Measures heading, rate of turn, pitch and roll
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof to suit up-mast mounting on steel-hulled vessels
• NMEA 2000® connectivity

Heading Sensor with Rate Of Turn
This compact sensor package provides heading, rate of turn, pitch and roll data to equipment connected over an industry-standard NMEA 2000® network. More than just a compass, the Precision-9 is an ideal source of heading and motion data for Simrad autopilots, radar systems, multifunction displays, and other systems.

Solid-State Sensor Technology
The Precision-9 measures motion on nine separate axes in order to calculate the most accurate heading and rate-of-turn information possible. Its sophisticated solid-state design avoids many common limitations of conventional fluxgate electronic compasses, and delivers heading accuracy of ±2 degrees after calibration.

Mount Almost Anywhere
An easily adjustable mounting bracket allows the Precision-9 to be installed on any vessel, in almost any location. The Precision-9 may also be mounted directly to any flat surface and, with an IPX7 waterproof rating, external up-mast installation is possible on steel hulled vessels to avoid magnetic interference.

Specifications

- Heading Sensor Accuracy: +/-2deg. After calibration
- Weight: 0,165kg + 0,130kg(bracket)
- Power Consumption max: 0,4W (N2K Load 1 len)
- N2K PGNs: 127250, 127251, 127257, 127252
- Supply Voltage: 12V DC (8-16V DC) via NMEA2000
- NMEA 2000 Connectivity: 1x NMEA 20000 Micro-C port, 1 LEN
- Warranty Period: 2 Years
- Operating Temperature Range:-25 to + 65ºC (-13 to + 149ºF)
- Storage Temperature Range: -30 to + 70ºC (-22 to + 158ºF)
- Dimensions:  W x H x D36 x 119 x 119mm (1,42 x 4,69 x 4,69")
- Compass Safe: 500mm (1,7")
- Mounting Type: Bracket, Bulkhead
- Approvals Compliance: CE under EMC directive 2014/30/EU
- Waterproof rating: IPx7
- Heading Sensor Data Available
- Magnetic heading, rate of turn, pitch/roll, heave
- Sensor Type: Solid state, rate stabilized

What's in the box?
N2K-T-RD Network T-Connector
N2KEXT-15RD 15ft Network Extension Cable
