Summary

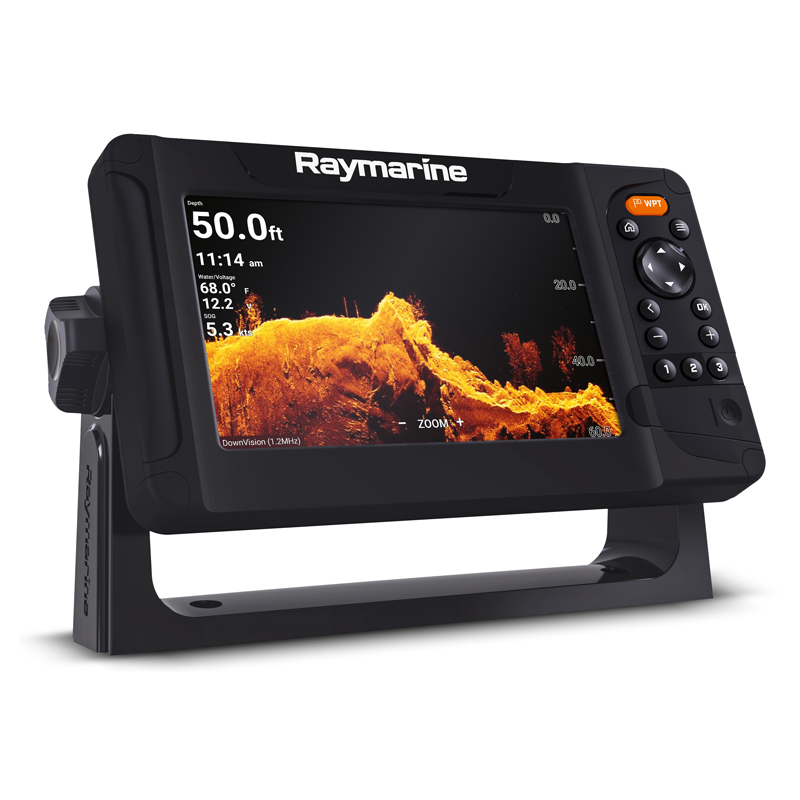

Raymarine Element 7 - Incl HV-100 Transducer is a sonar with sharp image, plotter and side view. Fish smarter - above and below the surface with real-time plotted depth maps and an easy-to-use operating system!

Productinformation

Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity. Fish smarter - above and below the surface!
  • Bright and Rugged - Sunlight viewable displays with integrated GPS/GNSS receiver
  • RealVision™ 3D Built-In - Accurately identify the location of ledges, channel beds, and other contour changes
  • Superior HyperVision™ - 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars
  • Fast Quad-Core Processor - For instantaneous chart re-draw and sharp 3D imaging.
  • All-in-one Transducer - Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation
  • Simple LightHouse Sport Operating System - Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn
  • HV-100 All-in-one transom mount HyperVision transducer included - compact and easy to install

Turn Up the Resolution with HyperVision™
  • HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
  • 1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
  • Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
  • Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft

Specifications
Connections: Power and NMEA2000, sensor connection
Display: 7.0" optically bound LCD
Screen resolution: 800 x 480 WVGA
Display type: Non-touch screen
Brightness: 1500 nits
Viewing angle: Up to 50° / Down to 60° / Left 70° / Right 70°
Overall dimensions: 240 x 135 62 mm (9.5 x 5.3 x 2.4 inches)
Product weight: 1.36 kg (3.0 lbs)
Water rating: IPx6 and IPx7
Operating temperature: -25°C to + 55°C (-13°F to 131°F)
Storage temperature range: -30°C to +70°C (-22°F to 158°F)
Voltage: 12 V DC (8 V to 16 V DC)
Power consumption (max 12 V DC): 15 Watt
GNSS/GPS: Built-in GNSS receiver: GPS/GLONASS
Echosounder type (built-in): Built-in CHIRP echosounder, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar connector: 15-pin HyperVision™ connector
Sonar depth: CHIRP sonar = 274 m (900 ft) | DownVision™ Hyper = 30 m (100 ft) | SideVision™ Hyper = 30 m (100 ft) | RealVision™ 3D Hyper = 30 m (100 ft)
Ethernet: not applicable
NMEA0183: Not applicable
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
NMEA2000 network support: INDATA: NMEA2000 compatible engines (max 2) | NMEA2000 compatible tank sensors (max 4) | Heading sensor (for map stabilisation) UTDATA: GPS (for VHF distress signal and DSC)
SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400 mm
USB: Not applicable
Wi-Fi: WiFi - 802.11 b/g/n
Bluetooth: Bluetooth 4.0 + low energy + power class 1.5
Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts in Raymarine's Chart Store
Tides and currents: requires LightHouse LNC2, Navionics or C-MAP
Waypoints/routes/tracks: 5,000 wpts/200 wpt-groups/ 50 rts - 250 wpt max/15 tracks - 10,000 max track points
Internal memory: 8GB Solid State
External memory: 1 x microSD slot - microSDHC max 32GB NTFS or FAT32 format/microSDXC max 2TB NTFS or FAT32 format (microSD format exFAT must be reformatted to NTFS or FAT32)
