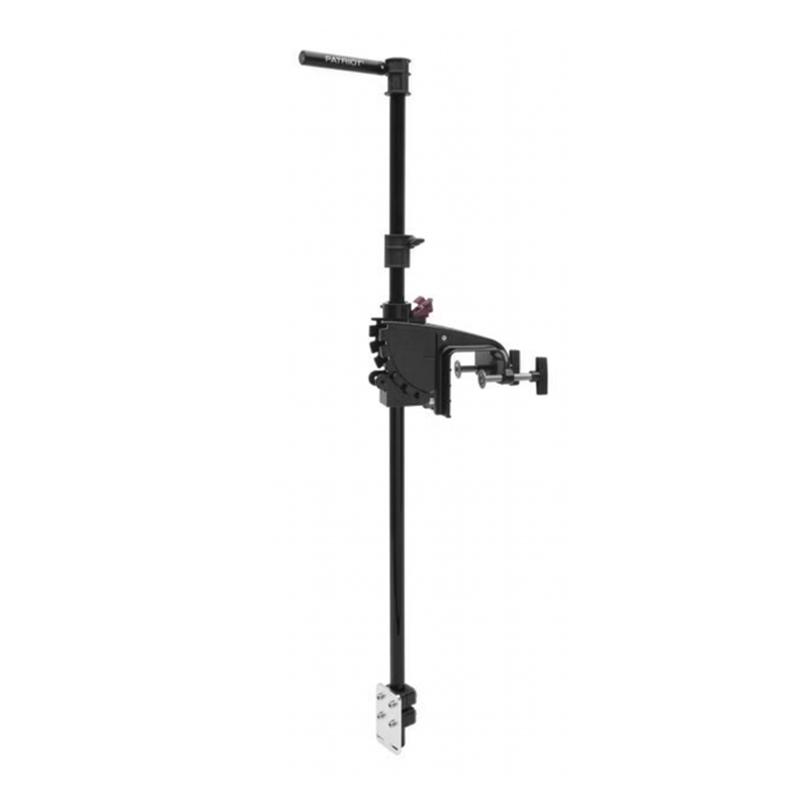

Patriot Multifix 360' Transducer Holder

Patriot® MultiFix is a sturdy, highly adjustable transducer bracket for anglers who want a flexible sonar setup on different boats and in various conditions. The smart design allows you to mount and fine‑tune almost any modern sonar transducer – from classic transom and side imaging models to live sonar such as Lowrance ActiveTarget, LiveSight and Garmin Panoptix – without tools and with precise control over depth and direction.

At the end of the arm, the aluminium mounting plate comes pre‑drilled for the most common side and transom transducers, making installation quick and tidy. Live transducers can also be clamped directly to the composite rig tube, giving you a neat, secure and vibration‑free mounting point for vertical fishing, pelagic targeting or live scouting. The 115 cm long rig tube can be easily shortened to fit your specific boat layout, whether you fish from an open aluminium boat, a small lake boat or a bigger predator rig.

The mounting jaw is built around a stable metal frame and fits railings and transoms up to 82 mm thick, so you can clamp it to most gunwales, sterns or handrails. The angle of the arm can be adjusted in 7 steps, allowing you to fine‑tune the transducer angle for clean sonar returns and minimum drag when trolling or drifting. Thanks to the stepless height adjustment, you can quickly raise the transducer when running at speed, or lower it deeper when scanning in tough conditions or shallow, weedy water.

For live sonar use, the top of the tube is equipped with a stepless quick lock and a separate handle, allowing smooth 360‑degree rotation of the arm. This lets you sweep the beam around the boat, track schools of baitfish, follow predators or scan structures in real time. The handle itself is attached with a quick release and can be removed in seconds if you prefer a more compact setup or do not need live rotation on a particular trip.

Patriot® MultiFix is also designed with mobility in mind. Because it clamps on and requires no drilling, you can move the complete sonar and transducer setup between different boats in just a moment – ideal if you fish from a club boat, rental boat or with friends. In winter you can mount the bracket on an ice sled or similar, turning the same sonar into a practical ice‑fishing unit, perfect for vertical fishing through the ice or searching for drop‑offs and underwater structures.

All adjustments are made with quick tensioners, so you can change height, rotation and angle even on the water with cold fingers, without spanners or screwdrivers. Once set, the bracket locks firmly in position, giving you a stable, reliable platform for your sonar transducer in all typical European fishing situations – from trolling and casting for pike and zander to pelagic fishing, vertical jigging and ice fishing.

• Robust transducer arm with stable metal mounting jaw for railings and transoms up to 82 mm
• Pre‑drilled aluminium plate for the most common side and transom transducers
• Live transducers can be mounted directly to the rig tube (e.g. Lowrance ActiveTarget, LiveSight, Garmin Panoptix)
• Rig angle adjustable in 7 steps for optimal sonar image and minimal drag
• Durable composite rig tube, 115 cm long and easy to shorten to fit your boat
• Rig tube outer diameter 25 mm, inner diameter 17 mm
• Stepless height adjustment to raise and lower the transducer quickly
• Stepless 360° rotation with removable top handle for live sonar scanning
• Locks securely in the desired position to prevent unwanted movement
• Quick, tool‑free adjustment with practical quick tensioners
• Easy to move between different boats, ideal for shared or rental boats
• Also suitable for ice fishing when mounted on an ice sled or similar
