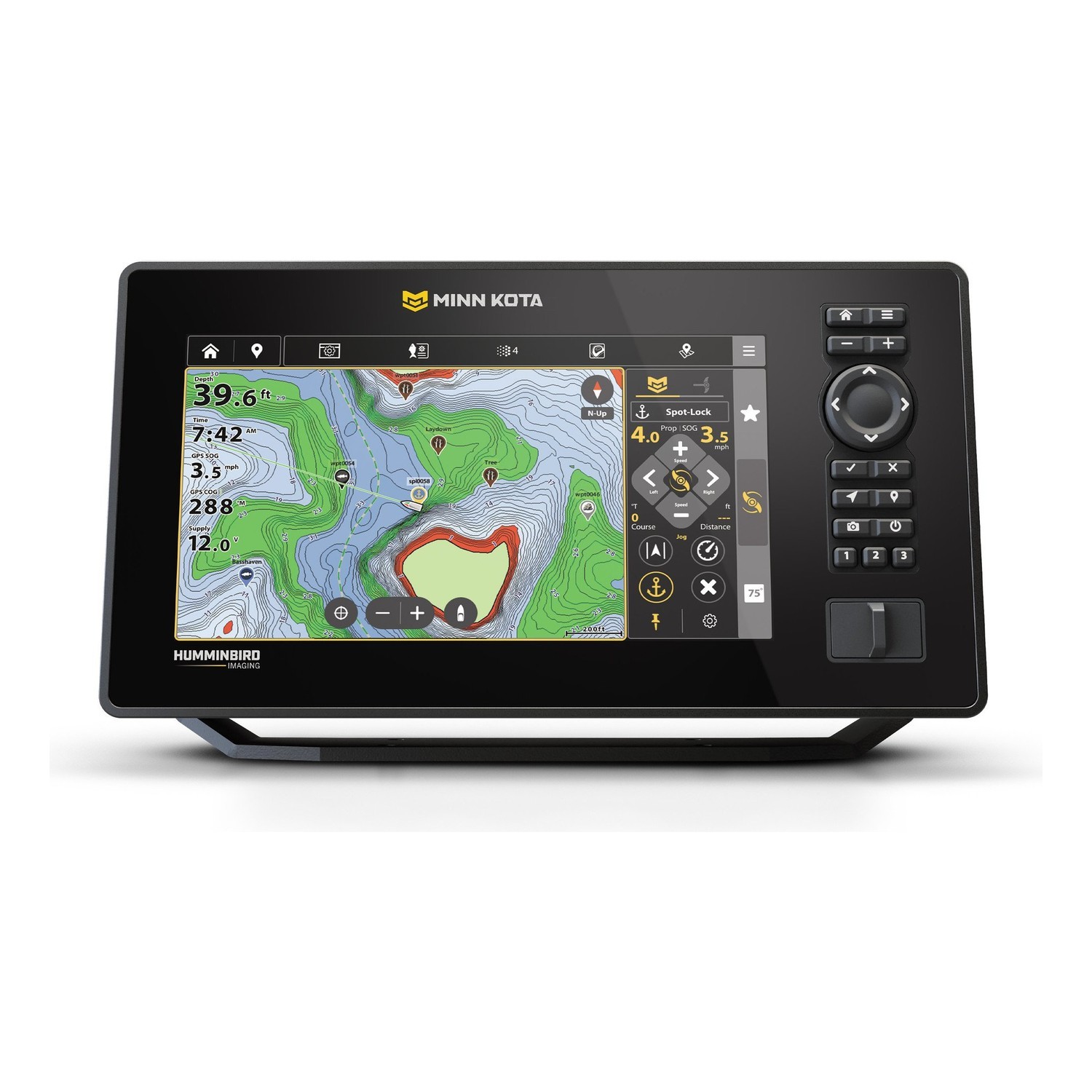

Minn Kota X9

Minn Kota X9 CMSI+ is a 9-inch fish finder and chartplotter with Humminbird Imaging, smart navigation functions and a bright, high-resolution touchscreen. MEGA Side & Down Imaging+ shows structures beneath and beside the boat, while Dual Spectrum CHIRP provides 2D sonar with target separation. The display remains readable in rain, bright sunlight and with polarised sunglasses. Cross Touch® allows control via the touchscreen or buttons. Programmable One-Boat Network buttons control a trolling motor and shallow-water anchor. AutoChart® Live creates charts in real time with depth contours, bottom hardness and vegetation. The media tool records the screen from 30 seconds previously to two minutes ahead and allows sharing through the app. Wi-Fi updates can be downloaded to the unit and sent to connected devices. When connected wirelessly to a Minn Kota trolling motor, Draw and Navigate™ lets you draw a route for the motor to follow, while Intelligent Depth Control™ warns of shallow water and can stop the boat using Spot-Lock® and a Minn Kota Raptor or Talon. The Minn Kota Fishing App manages waypoints and connected devices. The unit supports MEGA Live, MEGA Live 2, Minn Kota live, 360 Imaging, Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS.

• Display: 9-inch colour TFT touchscreen, 1280 x 720 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+; transducer: XM 14 HW CMSI T
• Coverage: 20°, 42°, 60° and (2) 86° @ -10 dB; frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• Depth: 2D 183 m with standard transducer or 1067 m with optional Airmar CHIRP; Down Imaging 122 m at 455 kHz / 61 m at MEGA; Side Imaging 244 m at 455 kHz / 122 m at MEGA side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak; internal GPS; waypoints/routes/tracks: 10,000/50/50 (20,000 points)
• Network: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network; optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics; memory: 2 x Micro SD
• Power: 10.8–20 V DC; consumption: 2.2 A; dimensions: 297 x 159 x 84 mm; weight: 5.62 kg
• Included: X9 CMSI+ fish finder, XM 14 HW CMSI T transom transducer, bracket with knobs, power cable and protective cover. Warranty: 2 years, or 3 years after product registration.
