Minn Kota X7

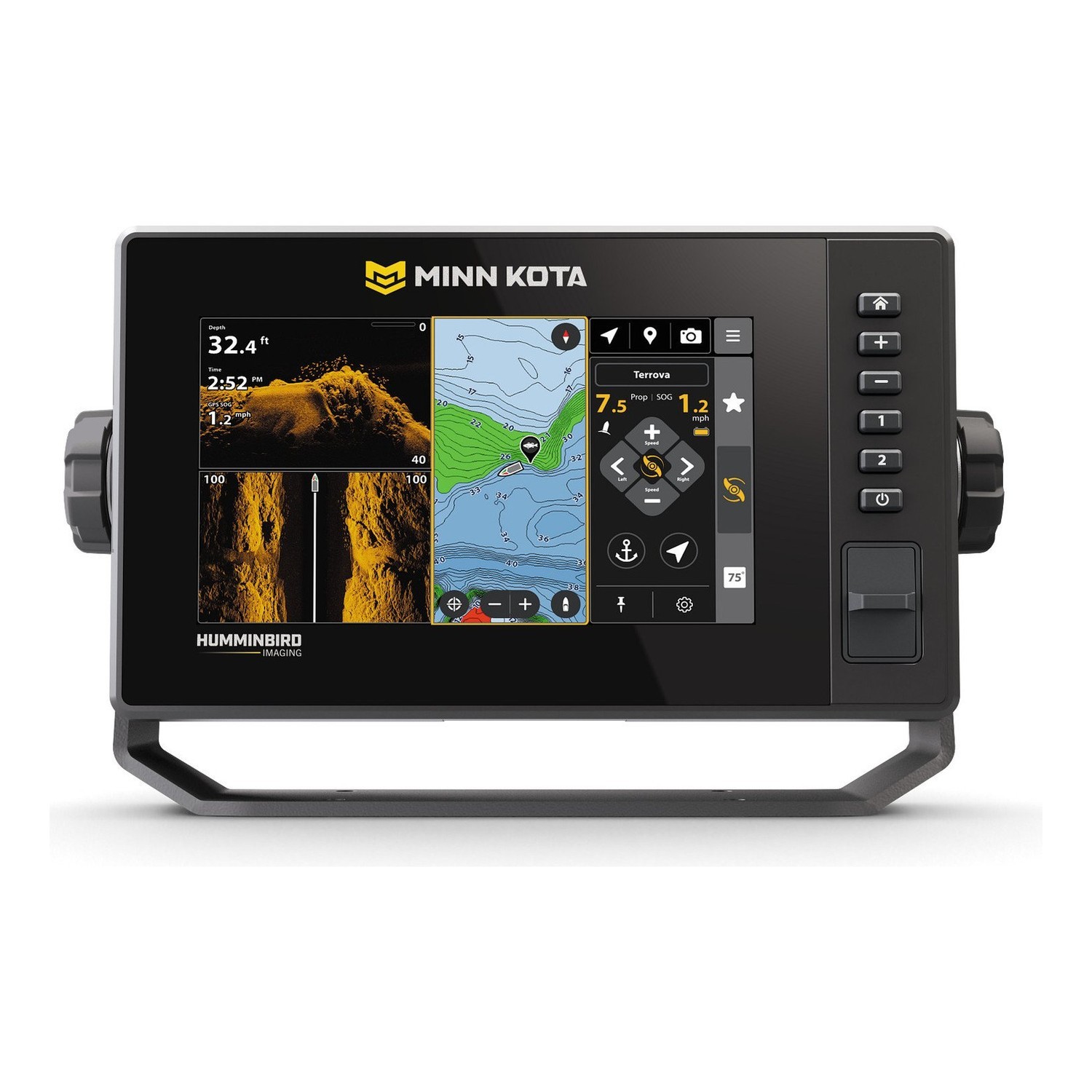

Minn Kota X7 CMSI combines a 7-inch fish finder and chartplotter with Humminbird Imaging, navigation functions and a high-resolution touchscreen. MEGA Side & Down Imaging shows structure beneath and beside the boat, while Dual Spectrum CHIRP provides 2D sonar with target separation. The bright display is readable in rain, strong sunlight and with polarised sunglasses. Cross Touch® allows control via the touchscreen or buttons. AutoChart® Live creates charts in real time with depth contours, bottom hardness and vegetation. The media tool records the screen from 30 seconds previously to two minutes ahead and allows sharing via the app. Wi-Fi updates can be downloaded to the fish finder and sent to connected devices. Wireless connection to a Minn Kota trolling motor enables Draw and Navigate™, Intelligent Depth Control™, Spot-Lock® and Minn Kota Raptor or Talon shallow-water anchors. The Minn Kota Fishing App manages waypoints and controls the trolling motor and anchors. GPS is internal. Compatible systems include MEGA Live, MEGA Live 2, Minn Kota live, 360 Imaging, Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS. Supplied with an XNT 14 HW CMSI 150 T transom transducer, bracket with knobs and power cable. Warranty: 2 years, or 3 years with product registration.

• Display: 7-inch colour TFT touchscreen, 1024 x 600 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging and MEGA Side Imaging
• Coverage: 20°, 42°, 60° and (2) 86° @ -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 183 m with standard transducer; 1067 m with optional Airmar CHIRP
• Down Imaging depth: 61 m at 455 kHz
• Side Imaging range: 244 m at 455 kHz / 122 m MEGA, side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak
• Waypoints/routes/tracks: 10,000 / 50 / 50, with 20,000 points
• Networking: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics
• Memory: 2 x Micro SD; voltage: 10.8–20 V DC
• Power consumption: 1.5 A
• Dimensions (W x H x D): 297 x 159 x 84 mm; weight: 3.27 kg
• Power supply: 12 V
