Minn Kota X16

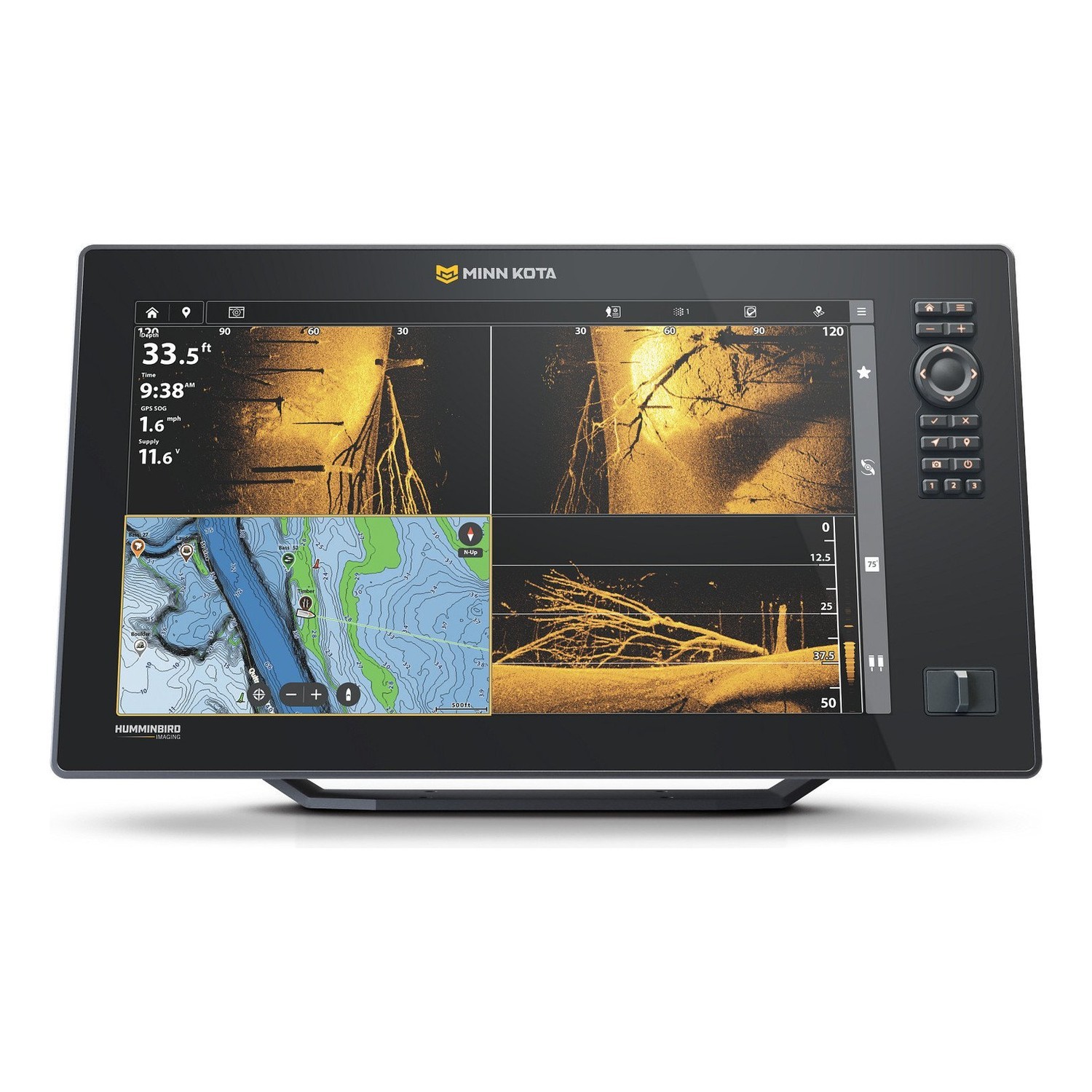

Minn Kota X16 CMSI+ is a 16-inch fish finder and chartplotter with industry-leading Humminbird Imaging, smart navigation functions and a high-resolution, bright touchscreen. The display is readable in rain, strong sunlight and with polarised sunglasses, and Cross Touch® allows operation by touchscreen or buttons. MEGA Side & Down Imaging+ provides detailed views beneath and beside the boat, while Dual Spectrum CHIRP delivers target separation in 2D sonar. Programmable One-Boat Network buttons control a trolling motor and shallow-water anchor from the fish finder. AutoChart® Live creates charts in real time with depth contours, bottom hardness and vegetation. The media tools can record the screen from 30 seconds earlier to two minutes ahead and share it via the app. Wi-Fi updates can be downloaded to the fish finder and sent to connected devices. Wireless connection to a Minn Kota trolling motor enables Draw and Navigate™, Intelligent Depth Control™ and the Minn Kota Fishing App. The system can warn when the boat drifts into shallow water and, if needed, stop it automatically using Spot-Lock® and a Minn Kota Raptor or Talon shallow-water anchor.

• Display: 15.6-inch colour TFT touchscreen, 1920 x 1080 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Transducer: XM 14 HW CMSI T
• Coverage: 20°, 42°, 60° and (2) 86° @ -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 183 m with standard transducer; 1067 m with optional Airmar CHIRP
• Down Imaging depth: 122 m at 455 kHz / 61 m with MEGA
• Side Imaging range: 244 m at 455 kHz / 122 m with MEGA, side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak
• GPS: Internal
• Waypoints / routes / tracks: 10,000 / 50 / 50 (20,000 points)
• Networking: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network
• Compatible with: MEGA Live, MEGA Live 2, Minn Kota Live, 360 Imaging, Minn Kota Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics
• Memory cards: 2 x Micro SD
• Voltage: 10.8–20 V DC
• Current draw: 3.5 A
• Weight: 7.98 kg
• Warranty: 2 years, or 3 years with product registration
• Included: X16 CMSI+ fish finder, XM 14 HW CMSI T transom transducer, bracket with knobs, power cable and protective cover
• Power supply: 12 V
