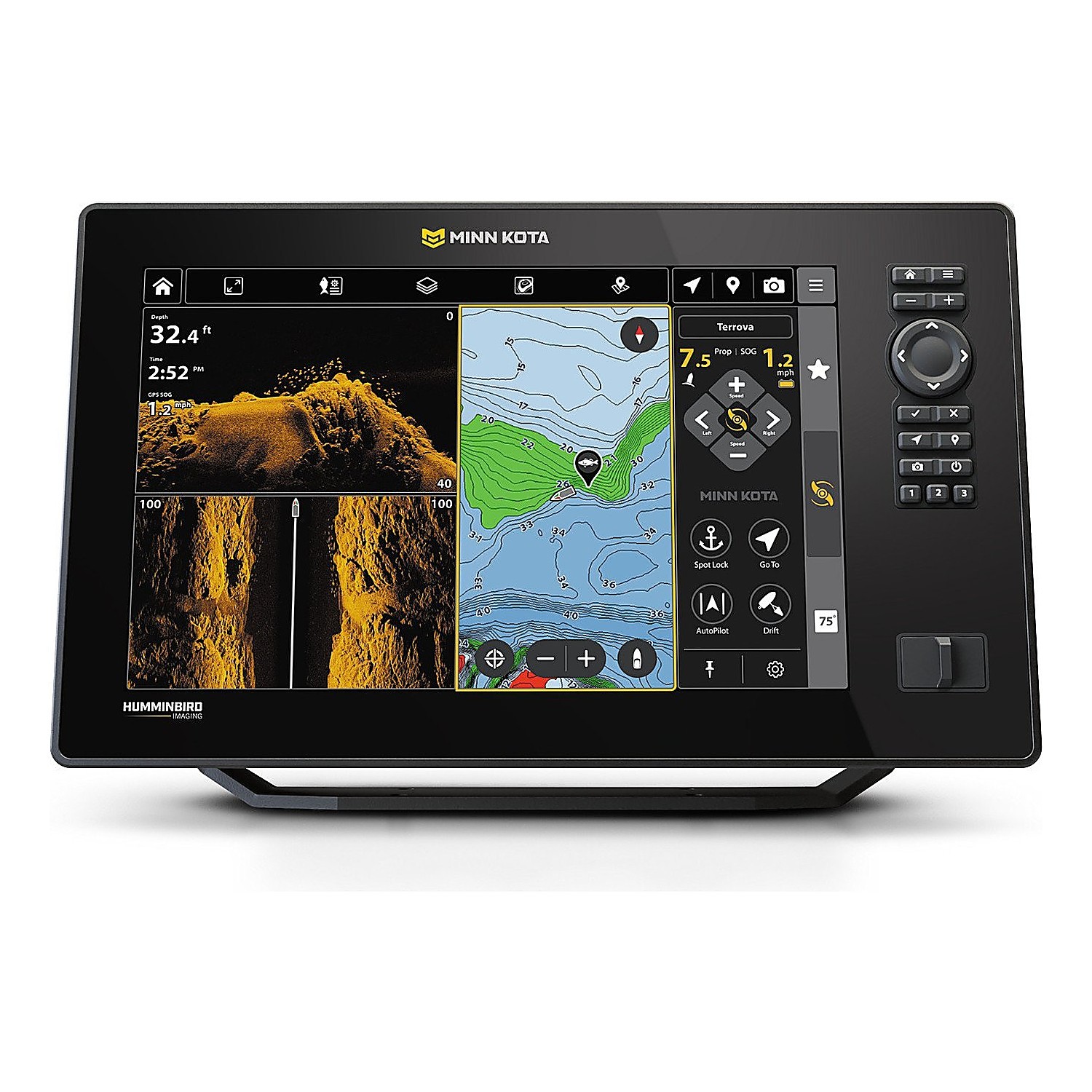

Minn Kota X12

Minn Kota X12 CMSI+ is a 12-inch echo sounder and chartplotter with Humminbird MEGA Side & Down Imaging+, Dual Spectrum CHIRP and a high-resolution colour touchscreen. The display remains readable in rain, bright sunlight and when using polarised sunglasses. Cross Touch® allows operation via the touchscreen or buttons, while programmable One-Boat Network buttons control a trolling motor and shallow-water anchor from the unit. AutoChart® Live creates charts in real time with depth contours, bottom hardness and vegetation. The media tool records 30 seconds of previous and up to two minutes of future screen activity for sharing via the app. Wi-Fi enables software updates directly on the unit and connected devices. When paired wirelessly with a Minn Kota trolling motor, Draw and Navigate™ lets the motor follow routes drawn on screen, while Intelligent Depth Control™ warns of shallow water and can stop the boat using Spot-Lock® and a Minn Kota Raptor or Talon. The Minn Kota Fishing App manages waypoints and connected equipment. Supplied with an XM 14 HW CMSI T transducer, bracket, power cable and protective cover.

• Display: 12.1-inch colour TFT touchscreen, 1280 x 800 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Transducer: XM 14 HW CMSI T
• Coverage: 20°, 42°, 60° and (2) 86° @ -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 183 m with standard transducer; 1067 m with optional Airmar CHIRP
• Down Imaging depth: 122 m at 455 kHz / 61 m with MEGA
• Side Imaging range: 244 m at 455 kHz / 122 m with MEGA, side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak
• GPS: Internal
• Waypoints / routes / tracks: 10,000 / 50 / 50 (20,000 points)
• Networking: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network
• Compatible with: MEGA Live, MEGA Live 2, Minn Kota live, 360 Imaging, Minn Kota Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics
• Memory cards: 2 x Micro SD
• Voltage: 10.8–20 V DC
• Power consumption: 2.4 A
• Dimensions (W x H x D): 359 x 215 x 86 mm
• Weight: 6.71 kg
• Warranty: 2 years, or 3 years with product registration
• Included: X12 CMSI+ echo sounder, XM 14 HW CMSI T transom transducer, bracket with knobs, power cable and protective cover
