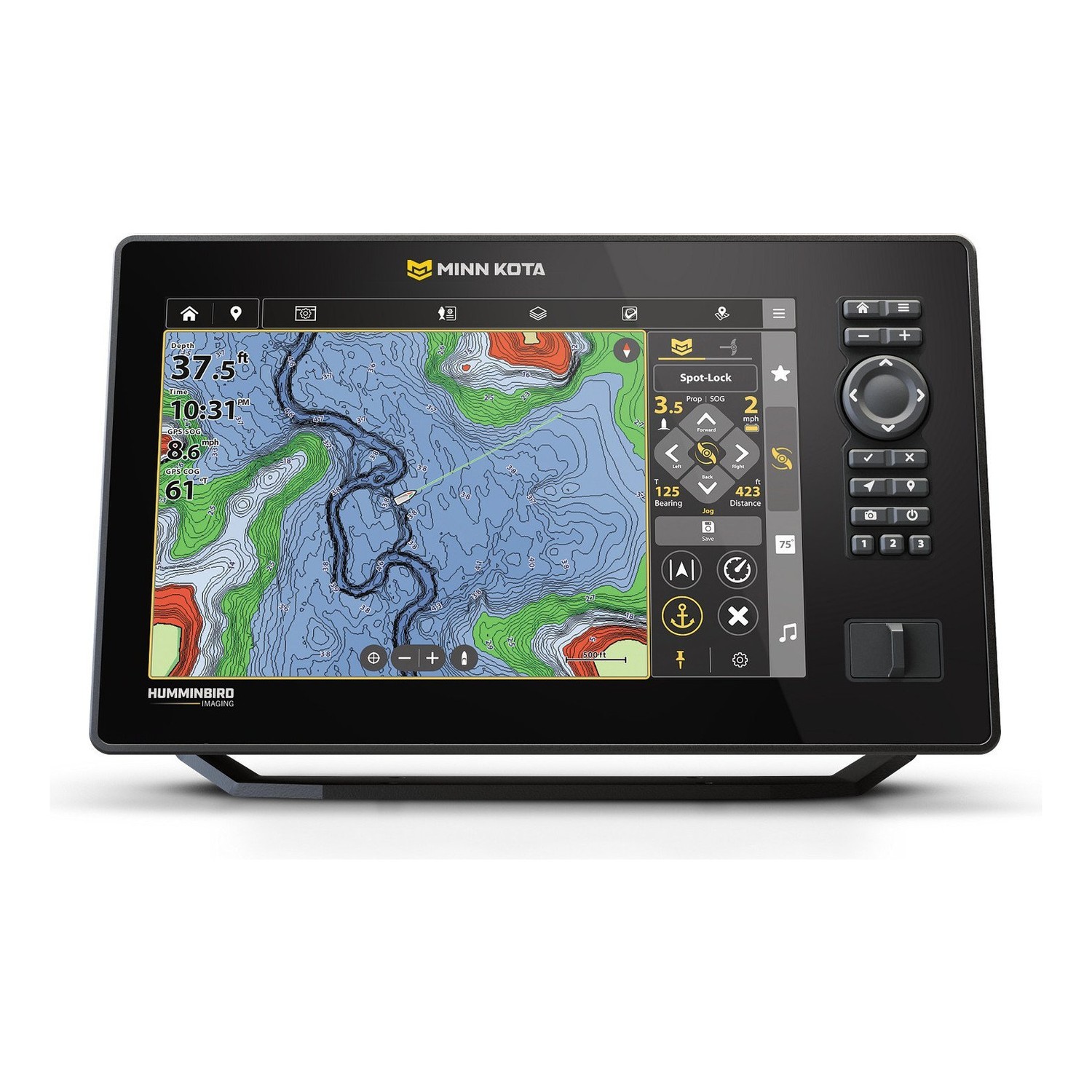

Minn Kota X10

Minn Kota X10 CMSI+ is a 10-inch fish finder and chartplotter with Humminbird Imaging, smart navigation functions and a high-resolution touchscreen. MEGA Side & Down Imaging+ shows detail beneath and beside the boat, while Dual Spectrum CHIRP provides 2D sonar with target separation. The display is readable in rain, bright sunlight and with polarised sunglasses. Cross Touch® allows control by touchscreen or buttons, and programmable One-Boat Network buttons control a trolling motor or shallow-water anchor. AutoChart® Live creates charts in real time with depth contours, bottom hardness and vegetation. The media tool records from 30 seconds previously to two minutes ahead and supports sharing via the app. Wi-Fi enables software updates. Wireless Minn Kota connection adds Draw and Navigate™, Intelligent Depth Control™, and Minn Kota Fishing App control. Supplied with an XM 14 HW CMSI T transducer, bracket, power cable and cover.

• Display: 10.1-inch colour TFT touchscreen, 1280 × 800 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Transducer: XM 14 HW CMSI T
• Coverage: 20°, 42°, 60° and two × 86° at -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 183 m with standard transducer; 1,067 m with optional Airmar CHIRP
• Down Imaging depth: 122 m at 455 kHz / 61 m at MEGA
• Side Imaging range: 244 m at 455 kHz / 122 m at MEGA, side to side
• Transmit power: 1,000 W RMS / 8,000 W peak-to-peak
• GPS: Internal
• Waypoints / routes / tracks: 10,000 / 50 / 50 (20,000 points)
• Networking: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network
• Compatible with MEGA Live, MEGA Live 2, Minn Kota Live, 360 Imaging, Minn Kota Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics
• Memory cards: 2 × Micro SD
• Voltage: 10.8–20 V DC
• Current draw: 2.2 A
• Dimensions (W × H × D): 307 × 184 × 84 mm
• Weight: 5.81 kg
• Warranty: 2 years, or 3 years after product registration
• Included: X10 CMSI+ fish finder, XM 14 HW CMSI T transom transducer, bracket with knobs, power cable and protective cover
