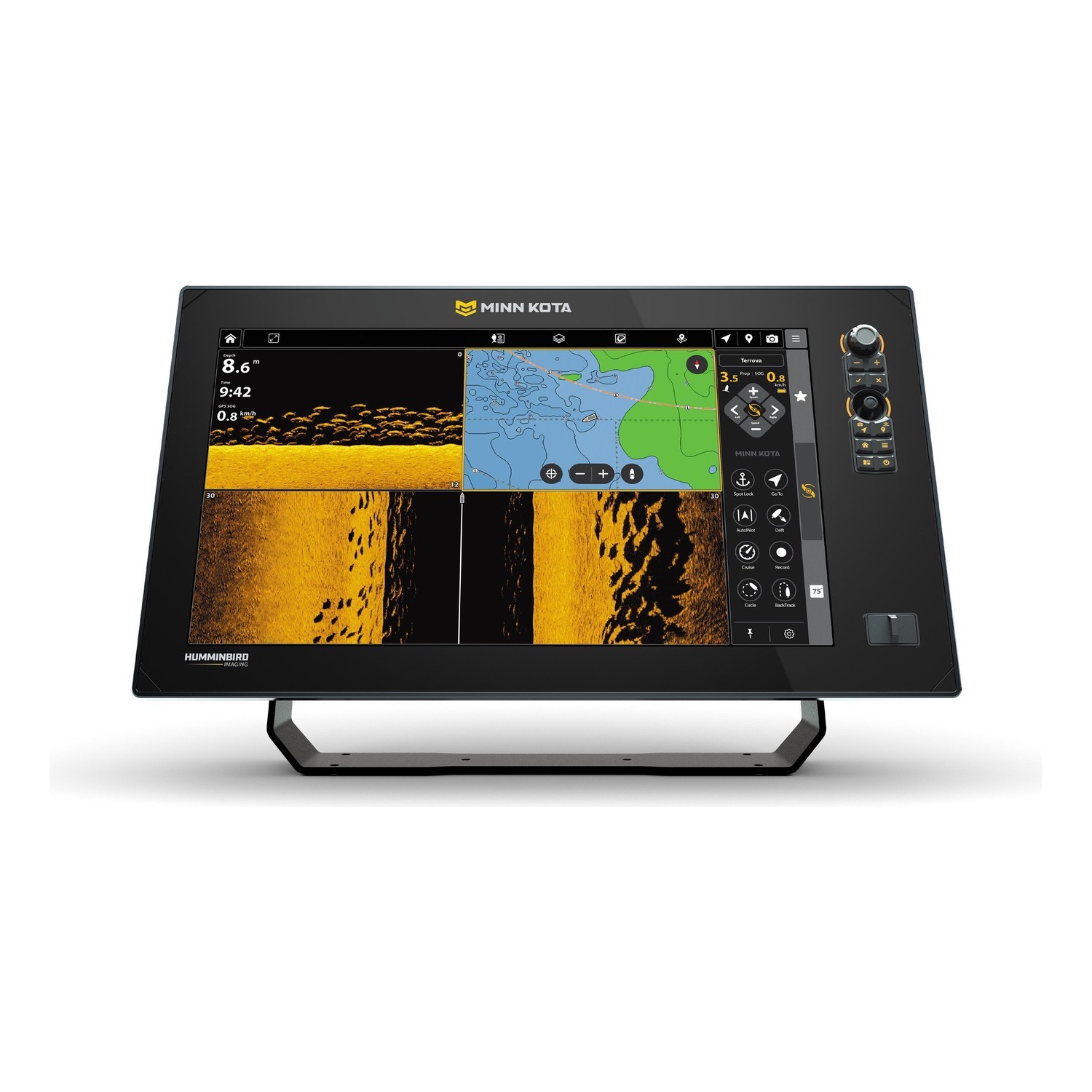

Minn Kota A19

The Minn Kota A19 MSI+ is a 19-inch fish finder and chartplotter with industry-leading Humminbird Imaging, smart navigation functions and a highly clear Full HD touchscreen. It includes a transducer. MEGA Side & Down Imaging+ shows detailed structures beneath and beside the boat, while Dual Spectrum CHIRP provides 2D sonar with target separation. The bright, high-resolution display remains easy to read in rain, strong sunlight and with polarised glasses. Cross Touch® allows control via the touchscreen or buttons, and AutoChart® Live creates real-time charts with depth contours, bottom hardness and vegetation. Wi-Fi updates can be downloaded directly to the unit and forwarded to connected devices. Wireless connection to a Minn Kota trolling motor enables Intelligent Depth Control™, which warns of shallow water and can automatically stop the boat using Spot-Lock® and a Minn Kota Raptor or Talon shallow-water anchor. The Minn Kota Fishing App manages waypoints and controls the trolling motor and anchor from a mobile phone.

• Display: 18.5-inch colour TFT touchscreen, 1920 x 1080 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Transducer: XM 14 HW MSI T transom transducer
• Coverage: 20°, 42°, 60° and (2) 86° at -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 366 m with standard transducer; 1067 m with optional Airmar CHIRP
• Down Imaging depth: 38 m at 800 kHz, 76 m at MEGA, 122 m at 455 kHz
• Side Imaging range: 244 m at 455 kHz, 152 m at MEGA, 76 m at 800 kHz side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak
• GPS: internal
• Waypoints/routes/tracks: 10,000 / 50 / 50 (20,000 points)
• Networking: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network
• Compatible with MEGA Live, MEGA Live 2, Minn Kota live, 360 Imaging, Minn Kota Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics
• Memory cards: 2 x Micro SD
• Voltage: 10.8–20 V DC
• Power consumption: 4.5 A
• Dimensions (W x H x D): 515 x 296 x 135 mm
• Weight: 6.12 kg
• Warranty: 2 years, or 3 years with product registration
• Included: A19 MSI+ fish finder, XM 14 HW MSI T transom transducer, bracket with knobs, power cable and protective cover
