Minn Kota A16

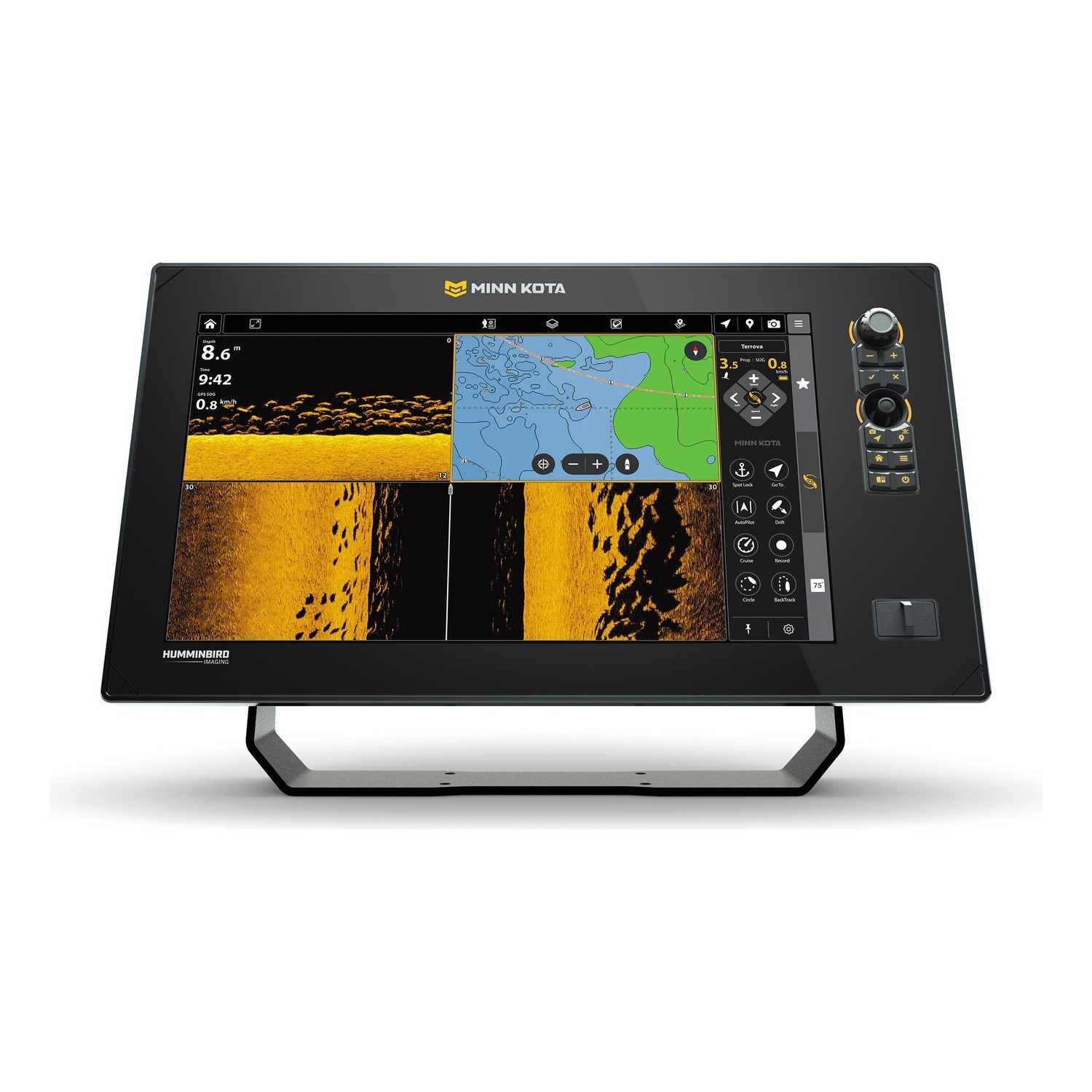

Minn Kota A16 MSI+ combines a 16-inch fish finder and chartplotter with Humminbird Imaging, smart navigation functions and a Full HD touchscreen. MEGA Side & Down Imaging+ shows detailed structures beneath and to the sides of the boat, while Dual Spectrum CHIRP provides 2D sonar with target separation. The bright, high-resolution display remains easy to read in rain, strong sunlight and with polarised sunglasses. Cross Touch® allows operation via the touchscreen or buttons. AutoChart® Live creates custom charts in real time with depth contours, bottom hardness and vegetation. Wi-Fi updates can be downloaded directly to the fish finder and forwarded to connected devices. When connected wirelessly to a Minn Kota trolling motor, Intelligent Depth Control™ warns when drifting into shallow water and can stop the boat automatically using Spot-Lock® and a Minn Kota Raptor or Talon shallow-water anchor. The Minn Kota Fishing App manages waypoints and controls the trolling motor and shallow-water anchor from a mobile phone. The unit has an internal GPS and supports Ethernet, NMEA 2000, Wi-Fi and One-Boat Network connectivity. It is compatible with MEGA Live, MEGA Live 2, Minn Kota live, 360 Imaging, Minn Kota Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS. Available with or without transducer.

• Display: 15.6-inch colour TFT touchscreen, 1920 x 1080 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Transducer: XM 14 HW MSI T
• Coverage: 20°, 42°, 60° and (2) 86° @ -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 366 m with standard transducer; 1067 m with optional Airmar CHIRP
• Down Imaging depth: 38 m at 800 kHz, 76 m at MEGA, 122 m at 455 kHz
• Side Imaging range: 244 m at 455 kHz, 152 m at MEGA, 76 m at 800 kHz side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak
• Waypoints / routes / tracks: 10,000 / 50 / 50 (20,000 points)
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live, Navionics
• Memory card slots: 2 x Micro SD
• Voltage: 10.8–20 V DC
• Power consumption: 3.5 A
• Dimensions (W x H x D): 448 x 257 x 139 mm
• Weight: 4.76 kg
• Warranty: 2 years, or 3 years with product registration
• Included: A16 MSI+ fish finder, XM 14 HW MSI T transom-mount transducer, bracket with knobs, power cable and protective cover
