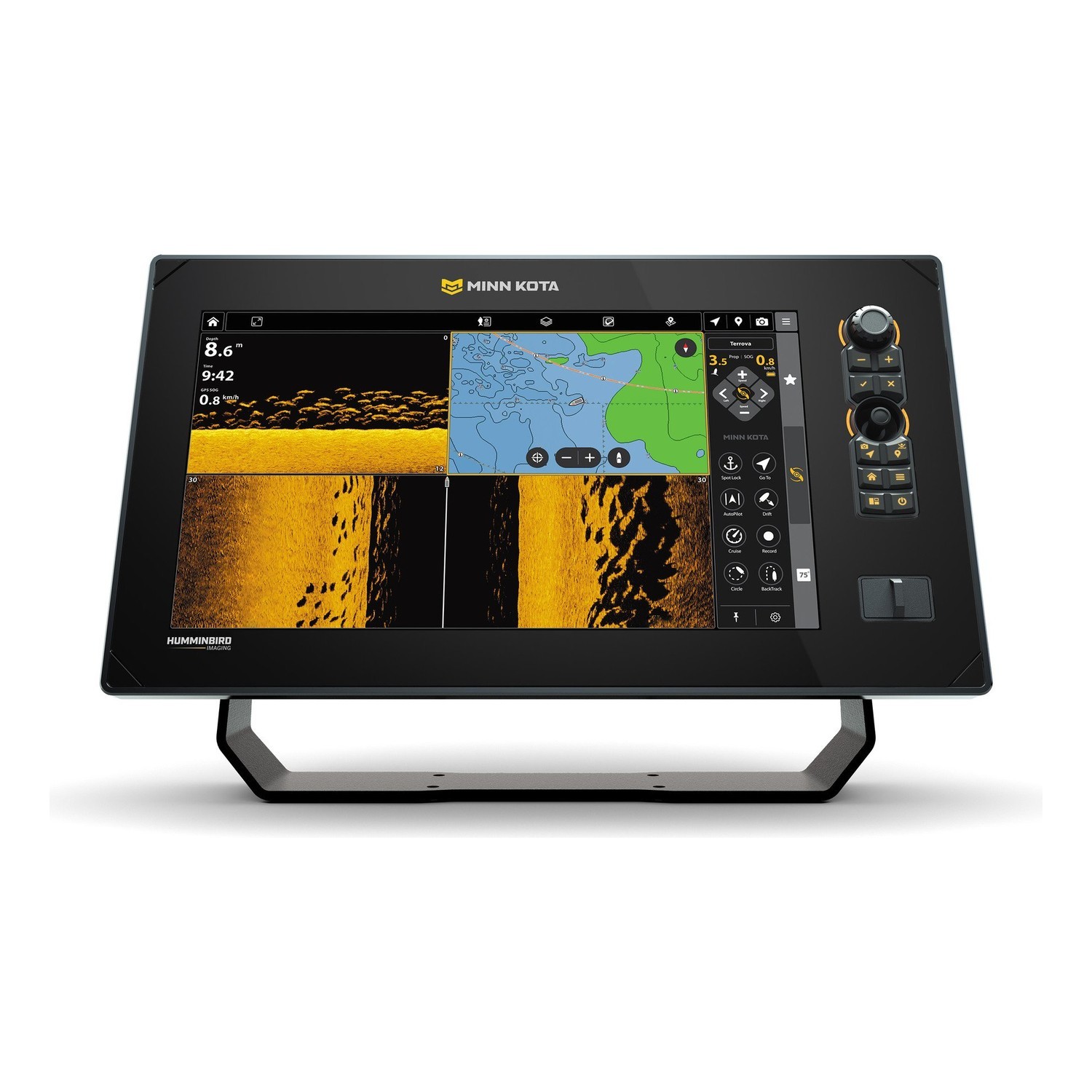

Minn Kota A13

The Minn Kota A13 MSI+ is a 13.3-inch fish finder and chartplotter with Humminbird imaging, smart navigation functions and an exceptionally clear Full HD touchscreen. It includes an XM 14 HW MSI T transom transducer. MEGA Side & Down Imaging+ shows detailed structures below and alongside the boat, while Dual Spectrum CHIRP provides 2D sonar with target separation. The bright, high-resolution display remains easy to read in rain, strong sunlight and when wearing polarised sunglasses. Cross Touch® allows operation via the touchscreen or buttons, and AutoChart® Live creates real-time charts with depth contours, bottom hardness and vegetation. Wi-Fi enables software updates directly to the unit and connected devices. Wireless integration with a Minn Kota trolling motor unlocks Intelligent Depth Control™, which warns of shallow water and can stop the boat automatically using Spot-Lock® and a Minn Kota Raptor or Talon shallow-water anchor. The Minn Kota Fishing App manages waypoints and controls the trolling motor and anchor from a mobile phone.

• Display: 13.3-inch colour TFT touchscreen, 1920 x 1080 pixels
• Sonar: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Transducer: XM 14 HW MSI T
• Coverage: 20°, 42°, 60° and (2) 86° @ -10 dB
• Frequencies: 50/83/200/455/800 kHz, HW DSC CHIRP and MEGA
• 2D depth: 366 m with standard transducer; 1067 m with optional Airmar CHIRP
• Down Imaging depth: 38 m at 800 kHz / 76 m at MEGA / 122 m at 455 kHz
• Side Imaging range: 244 m at 455 kHz / 152 m at MEGA / 76 m at 800 kHz, side to side
• Transmit power: 1000 W RMS / 8000 W peak-to-peak
• GPS: Internal
• Waypoints / routes / tracks: 10,000 / 50 / 50 (20,000 points)
• Networking: Ethernet, NMEA 2000, Wi-Fi and One-Boat Network
• Compatible with: MEGA Live, MEGA Live 2, Minn Kota live, 360 Imaging, Minn Kota Talon/Raptor, i-Pilot Link, Advanced GPS, radar, autopilot and AIS
• Optional charts: Minn Kota Maps, Humminbird LakeMaster, AutoChart Live and Navionics
• Memory cards: 2 x Micro SD
• Voltage: 10.8–20 V DC
• Power consumption: 2.5 A
• Dimensions (W x H x D): 396 x 228 x 144 mm
• Weight: 3.76 kg
• Warranty: 2 years, or 3 years with product registration
• Included: A13 MSI+ fish finder, XM 14 HW MSI T transom transducer, bracket with knobs and power cable
