Summary

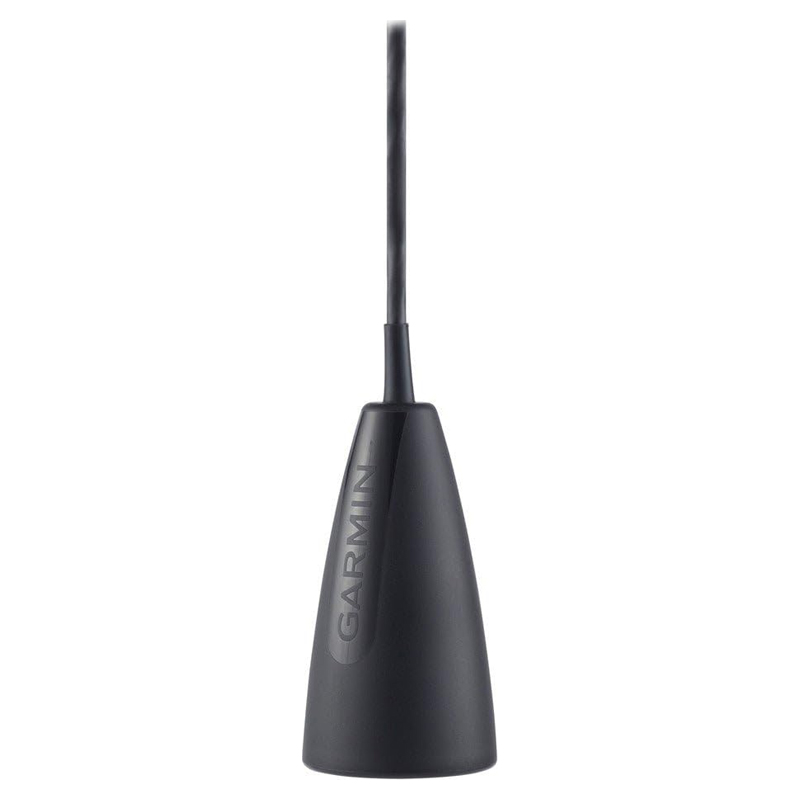

GT8HW-IF transducer is perfect for ice fishermen who want clear bottom definition under the ice as well as crisp, clear and wide fish arches with excellent target separation.

Productinformation

GT8HW-IF transducer is perfect for ice fishermen who want clear bottom definition under the ice as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width — up to 24 degree beam angle — provides a larger coverage area in the water.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. Its shape and beam widths have been optimized for ice fishing and feature a silicon-coated cable that remains flexible in harsh winter conditions.

Content
• GT8HW-IF transducer
• Float
• Documentation

Specs
• Frequency: CHIRP High Wide (150-240 kHz)
• Power: 250 W
• Beamwidth: 24°-16°
• Maximum depth: 800 ft. freshwater
• Depth/Speed/Temperature: Depth
• Number of pins: 4-pin
• Cable length: 8 ft.
• Supported deadrise/Transom angles: N/A
