The 8-pin transducer features high-narrow CHIRP traditional sonar and has a power rating of 500 W. Its shape and beam widths have been optimized for ice fishing, and it features a silicone-coated cable that remains flexible in harsh winter conditions. Includes a 8-pin to 4-pin transducer adapter cable, foam float and grommet.

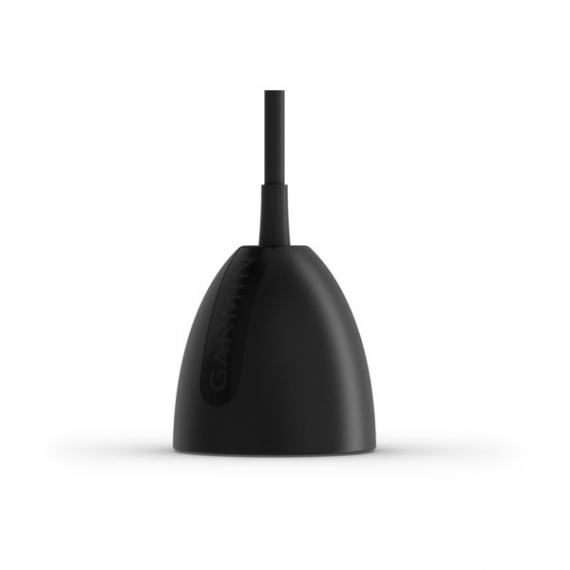

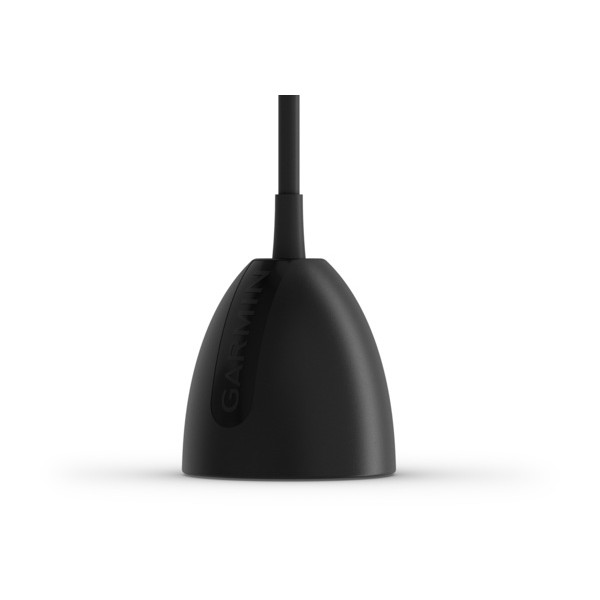

• GT10HN-IF transducer
• Frequency: CHIRP High Narrow (130-300 kHz)
• Power: 500 W
• Beam angle: 16-7
• Maximum depth:800 ft. freshwater
• Number of pins: 8-pin
• Cable length: 8 ft.
• Supported deadrise/Transom angles: N/A
