Summary

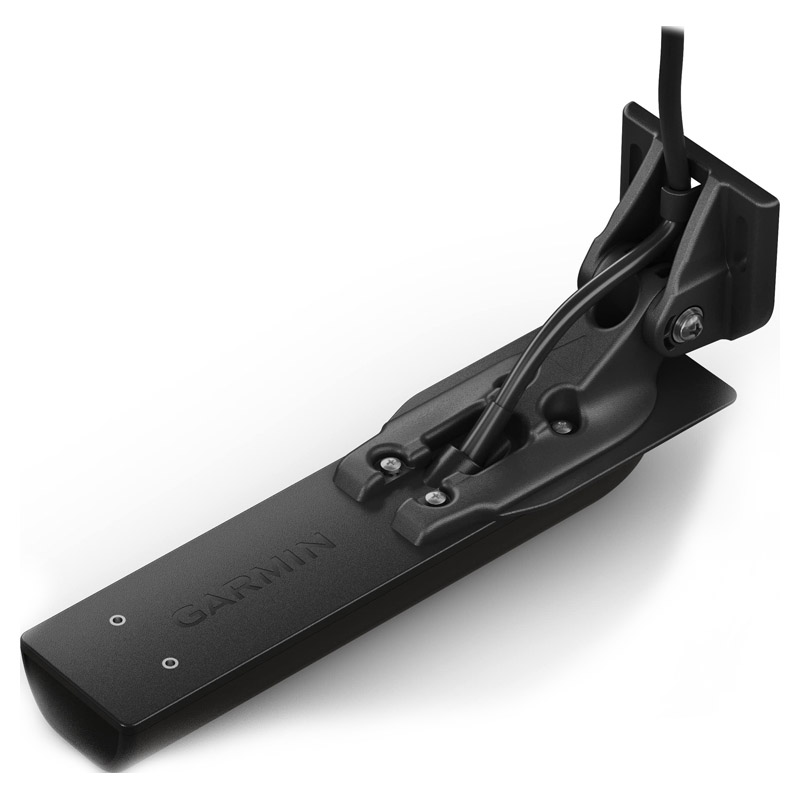

Garmin GT 56UHD-TM is an all-in-one transducer that offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

Productinformation

Garmin GT 56UHD-TM is an all-in-one transducer that offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more, so you can spend more time catching fish.

Ultra High-Definition Clearvü Scanning Sonar
Get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element.

Ultra High-Definition Sidevü Scanning Sonar
See everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

High Wide Chirp Traditional Sonar
Experience remarkably clear target separation and definition up to 800’ below your boat.

Multiple Scanning Sonar Frequencies
Use the perfect frequency for the waters you’re fishing. This transducer delivers 455 kHz, 800 kHz and 1,000 kHz for top performances at all depths.

Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Mounting Options
Everyone’s setup is different. That’s why we’ve included transom and trolling motor mounting hardware.

General

  • Frequency:  Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
  • Power Traditional:  350 W; ClearVü/SideVü 500 W
  • Beamwidth Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
  • Maximum Depth Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
  • Depth/Speed/Temperature: Depth and temperature
  • Number Of Pins: 12
  • Cable Length:  25 ft
  • Supported Deadrise/Transom Angles: 0°-70° degree transom
