Summary

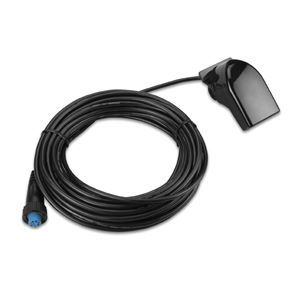

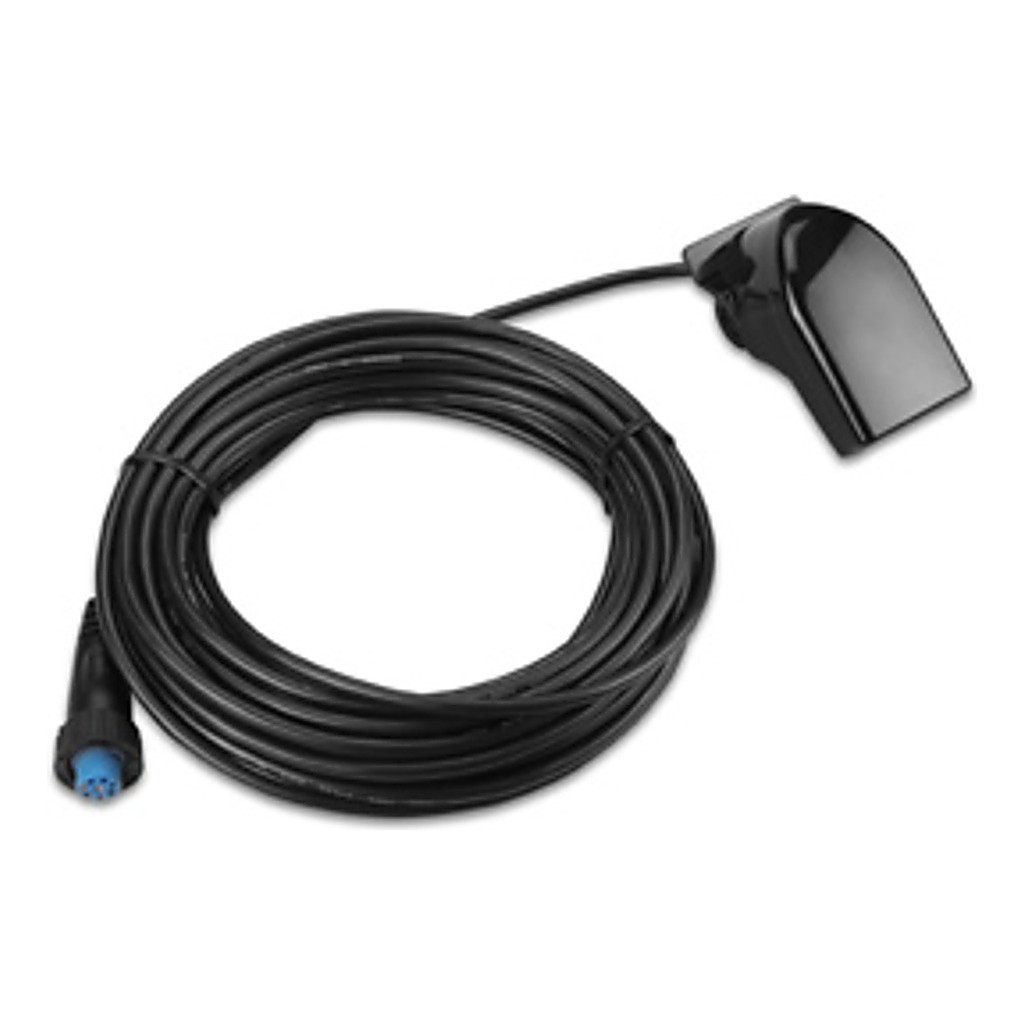

This dual beam transducer replaces the one included with your echo™ series fishfinder.

Productinformation

This dual beam transducer replaces the one included with your echo™ series fishfinder.

A 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with the echo fishfinders, transducer adapter cable, 010-11947-00, is required. Transducer, 010-10249-20, is preferred.

• Frequency: 77/200 kHz
• Power: 500 W
• Beamwidth: 45°/15°
• Maximum depth: 1,900 ft.
• Depth/Speed/Temperature: Depth and Temperature
• Number of pins: 8-pin
• Cable length: 30 ft.
• Supported deadrise/Transom angles: 0°-70° degree transom
