Summary

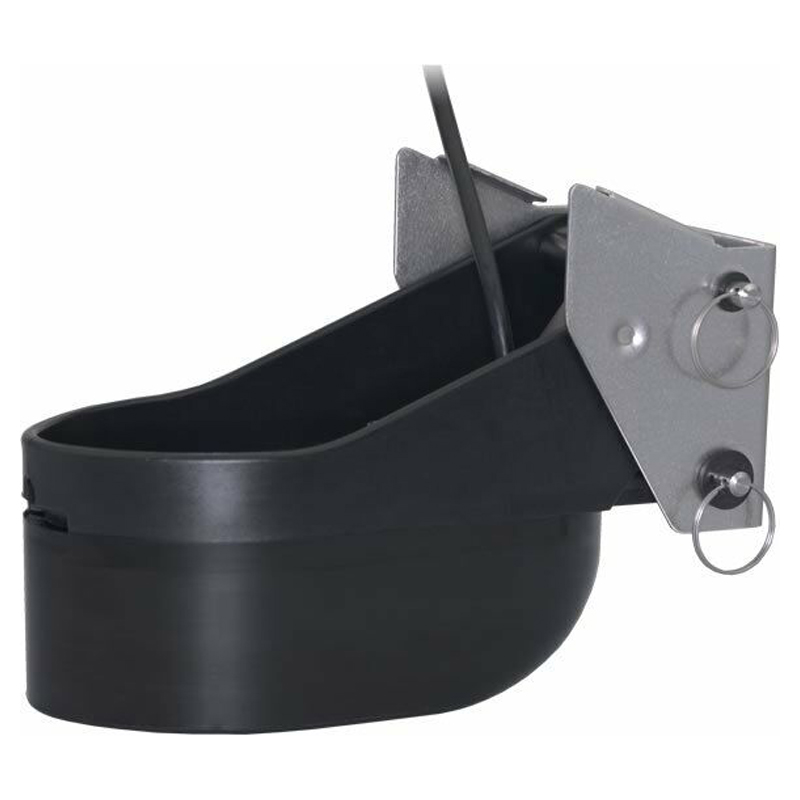

The XSonic TM185 HW from Airmar is a sonar sensor for CHIRP. It is constructed with a urethane housing and a stainless steel mounting bracket.

Productinformation

The XSonic TM185 HW from Airmar is a sonar sensor for CHIRP. It is constructed with a urethane housing and a stainless steel mounting bracket. It has a depth and fast-response water-temperature sensor.

CHIRPS across the following bandwidths:
High-Frequency: 150-250 kHz
25° Constant Beamwidth

Boat Size: 8 m to 12 m (25’ to 40’)

Boat Type: Outboards and I/O

Hull Type: Fiberglass, Wood, Metal

Can be retrofited to existing TM258, TM260, TM265, and TM275 brackets.

- Dimensions:  W x H x D108 x 191 x 74 mm (W, L, D) (4.3 x 7.5 x 2.9") without bracket
- Frequencies: 150-250 kHz
- Max Depth: 150m (500 ft) depending on Sonar
- Weight: 4 kg (8.9 lb)
