Summary

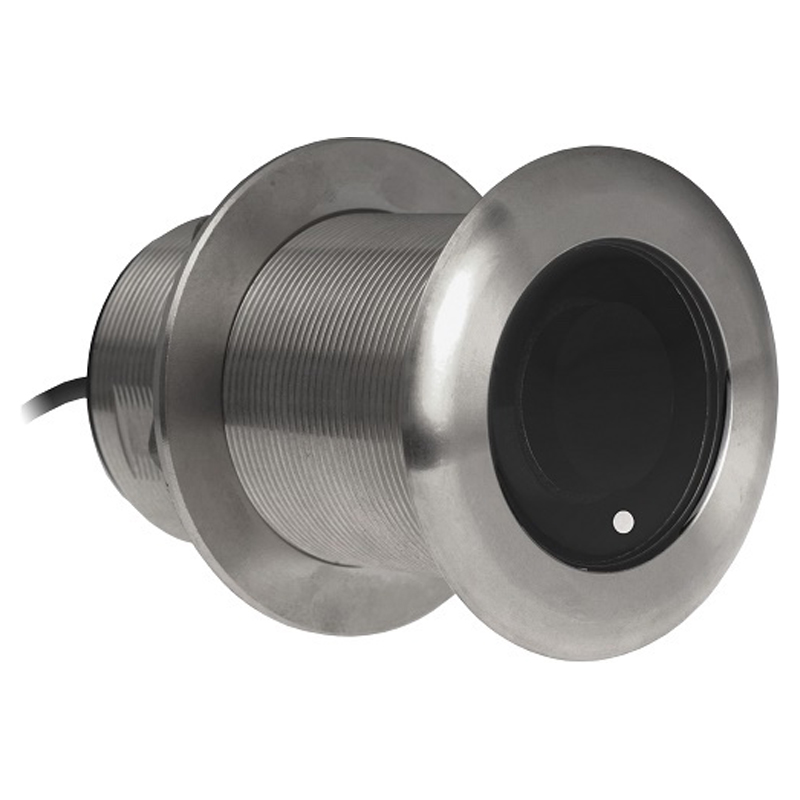

The XSONIC SS75M 12 DEG from Airmar is a bronze, thru-hull, tilted, medium-frequency (80-130kHz),with  depth and water temperature transducer.

Productinformation

The XSONIC SS75M 12 DEG from Airmar is a bronze, thru-hull, tilted, medium-frequency (80-130kHz),with  depth and water temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for a more accurate depth reading.

  • CHIRP
    CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
  • Depth/Temperature
    Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
  • Easy To Install and Medium Frequency:
    CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
  • Highly Accurate:
    Provides extremely accurate data.
  • 12° Tilt:
    The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.
  • Low Profile:
    The low profile housing minimizes drag with just 5mm extending outside of the hull.
  • Plug & Play Connection:
    Easily connect to NSSevo3

- Weight: 1.4 kg (3lbs)
- Max Depth300m (900 ft) depending on sonar
- Frequencies:80-130 kHz
- Dimensions: W x H x D94 (d) x 134 mm (3.7 x 5.3")
- Mounting Type: Through Hull
