Summary

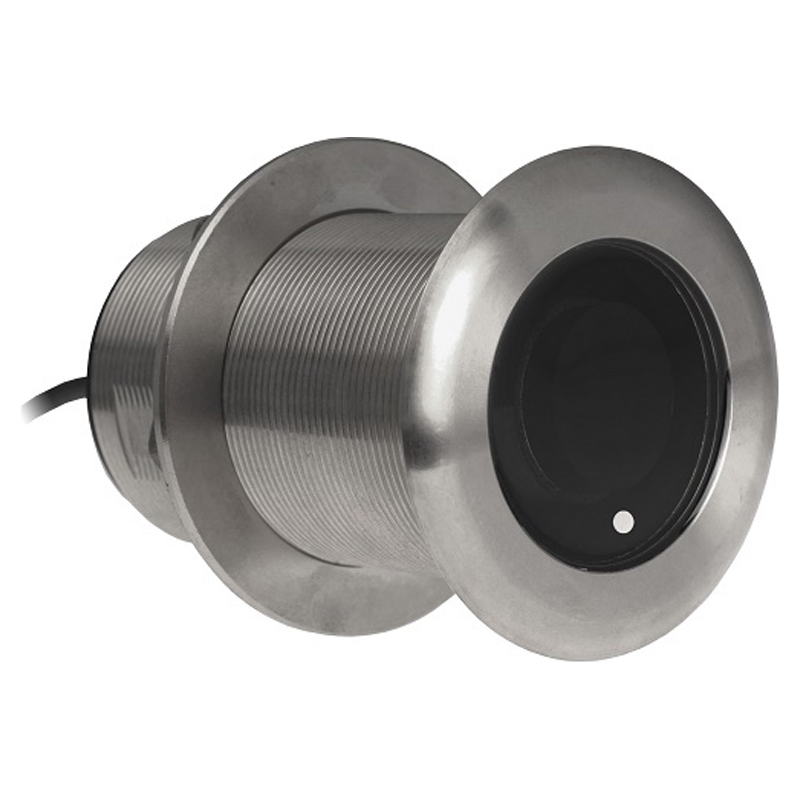

The XSONIC SS75M 0 DEG from Airmar is a bronze, thru-hull, non-tilted, medium-frequency (80-130kHz), with both a depth and water temperature transducer.

Productinformation

The XSONIC SS75M 0 DEG from Airmar is a bronze, thru-hull, non-tilted, medium-frequency (80-130kHz), with both a depth and water temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

  • CHIRP:
    CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.
  • Depth/Temperature:
    Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
  • Easy To Install and Medium Frequency:
    CHIRP range is 80kHz-130kHz for good target detail in shallow water and excellent bottom tracking in deep water.
  • Highly Accurate:
    Provides extremely accurate data.
  • 0° Tilt:
    The 0° tilt is ideal for boats with a 0° to 14° hull deadrise.
  • Low Profile:
    The low profile housing minimizes drag with just 5mm extending outside of the hull.
  • Plug & Play Connection:
    Easily connect to Simrad NSSevo3 or Lowrance HDS Gen3

- Weight: 1.4 kg (3lbs)
- Max Depth: 300m (900 ft) depending on sonar
- Frequencies: 80-130 kHz
- Dimensions: W x H x D94 (d) x 134 mm (3.7 x 5.3")
- Mounting Type: Through Hull
