Summary

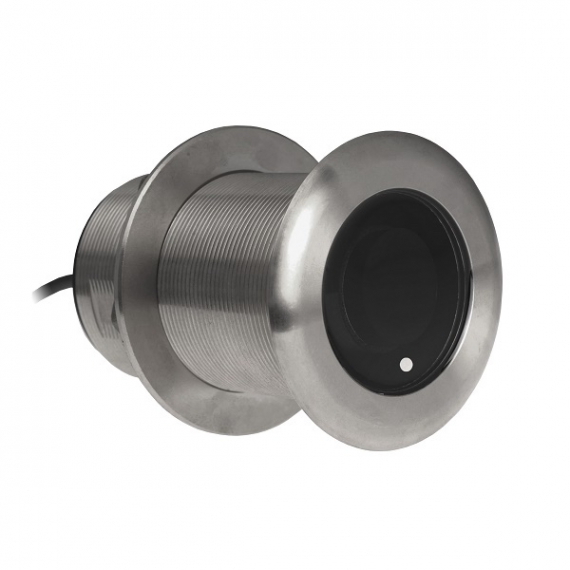

The XSONIC SS75H 20 DEG from Airmar is a stainless steel, thru-hull CHIRP transducer, perfect for sportfishing and commercial vessels up to 25ft in length.

Productinformation

The XSONIC SS75H 20 DEG from Airmar is a stainless steel, thru-hull CHIRP transducer, perfect for sportfishing and commercial vessels up to 25ft in length. This is a single-channel transducer that offers High CHIRP only, for the best target resolution in shallower depths.

  • Calculates the water depth
  • Temperature sensor for accurate water temperature readings.
  • CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.
  • The low profile housing minimizes drag with just 5mm extending outside of the hull.
  • The 20° tilt is ideal for boats with a 16° to 24° hull deadrise

- Weight: 1.4 kg (3lbs)
- Frequencies: 130-210 kHz
- Max Depth: 215m (700 ft) depending on sonar
- Dimensions: W x H x D94 (d) x 134 mm (3.7 x 5.3")
- Mounting Type: Through Hull
