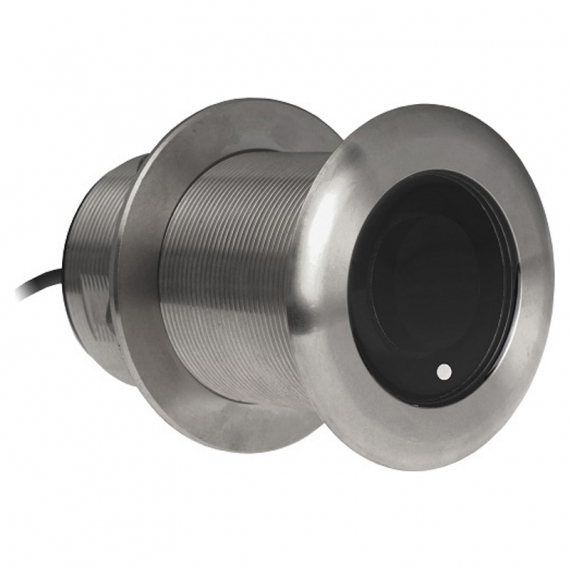

Airmar XSONIC SS75H 0 DEG

XSONIC SS75H 0 DEG from Airmar is perfect for smaller boats up to 8m (25ft). this is a stainless steel through hull mounted CHIRP transducer which enables bottom detection with great detail and resolution. This transducer makes it possible to distinguish between individual baitfish, game fish and underwater structures.

• Calculates the water depth
• Temperature sensor for accurate water temperature readings.
• CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.
• The low profile housing minimizes drag with just 5mm extending outside of the hull.
• The 0° tilt is ideal for boats with a 0° to 14° hull deadrise

- Weight: 1.4 kg (3lbs)
- Frequencies: 130 - 210 kHz
- Max Depth: 215m (700 ft) depending on sonar
- Dimensions: W x H x D 94 (d) x 134 mm (3.7 x 5.3")
- Mounting Type: Through Hull
