Summary

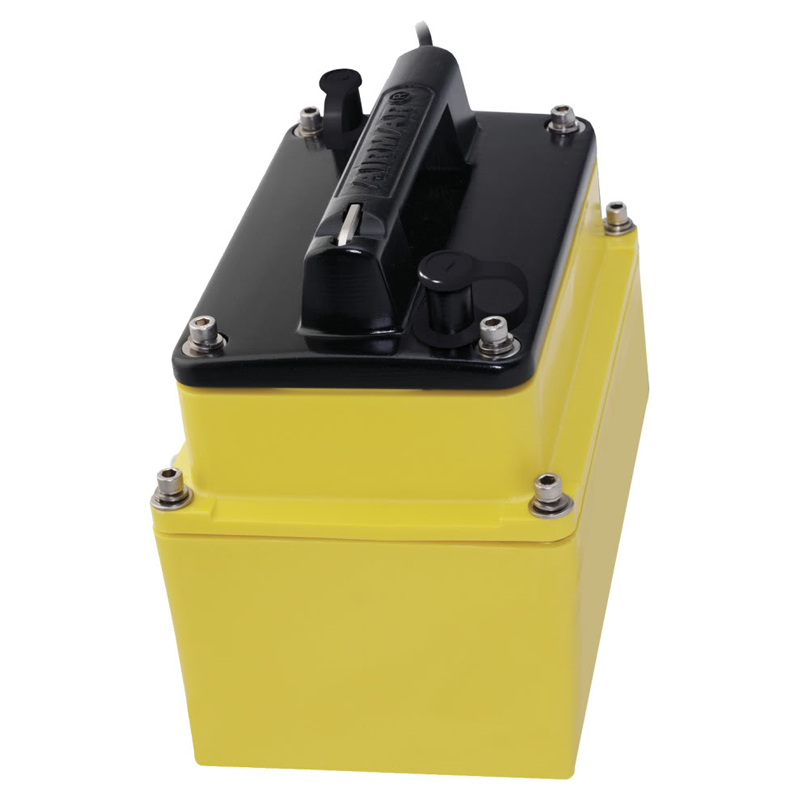

The dual-frequency M260 includes an array of seven ceramic elements delivering 50 kHz with a 19° beam width, and a single 200 kHz element with a 6° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

Productinformation

The dual-frequency M260 includes an array of seven ceramic elements delivering 50 kHz with a 19° beam width, and a single 200 kHz element with a 6° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.

Key Features
  • 50 kHz with 19° beam width
  • 200 kHz with 6° beam width
  • Up to 900 m (3000 ft) range at 50 kHz
  • 8 internal broadband ceramics
  • In-Hull with plastic/urethane housing and yellow in-hull tank (can mount in existing M260 installed tanks)
  • Suitable for fiberglass hulls
  • Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
  • Recommended for use with the SonarHub sounder module, Simrad NSSevo3 sport multifunction displays
